AD8009 Series

Catalog

BOARD EVAL FOR AD8009

Part	Board Type	Utilized IC / Part	Amplifier Type	Supplied Contents	Contents	Channels per IC	-3db Bandwidth	Current - Supply	Slew Rate	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Current - Output / Channel [custom]	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Supplier Device Package	Number of Circuits	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]

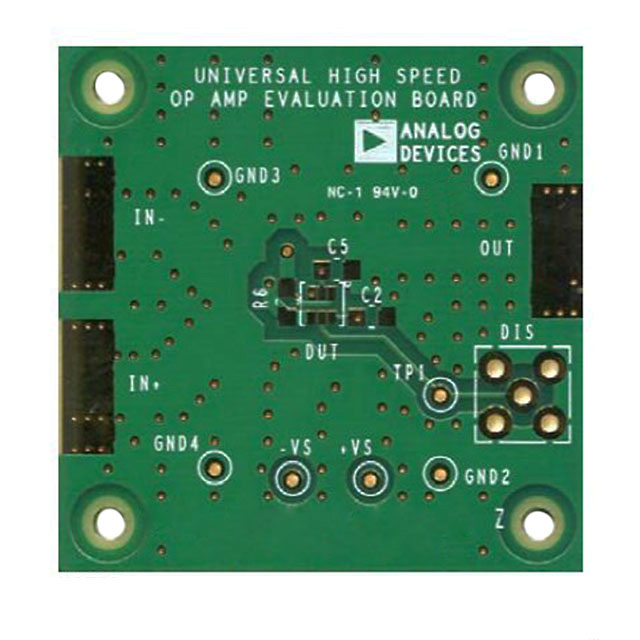

Analog Devices AD8009JRT-EBZ	Bare (Unpopulated)	SOT-23-5 Package	Current Feedback	Board(s)	Unpopulated (Bare) Board(s)	1 - Single
Analog Devices AD8009ARZ-REEL			Current Feedback				1 GHz	16 mA	5500 V/µs	8-SOIC	3.9 mm	0.154 in	Surface Mount	175 mA	5 V	50 µA	8-SOIC	1	2 mV	85 °C	-40 °C	12 V
Analog Devices AD8009JRTZ-REEL7			Current Feedback				845 MHz	16 mA	5500 V/µs	SC-74A SOT-753			Surface Mount	175 mA	5 V	50 µA	SOT-23-5	1	2 mV	70 °C	0 °C	12 V
Analog Devices AD8009JRTZ-R2			Current Feedback				845 MHz	16 mA	5500 V/µs	SC-74A SOT-753			Surface Mount	175 mA	5 V	50 µA	SOT-23-5	1	2 mV	70 °C	0 °C	12 V

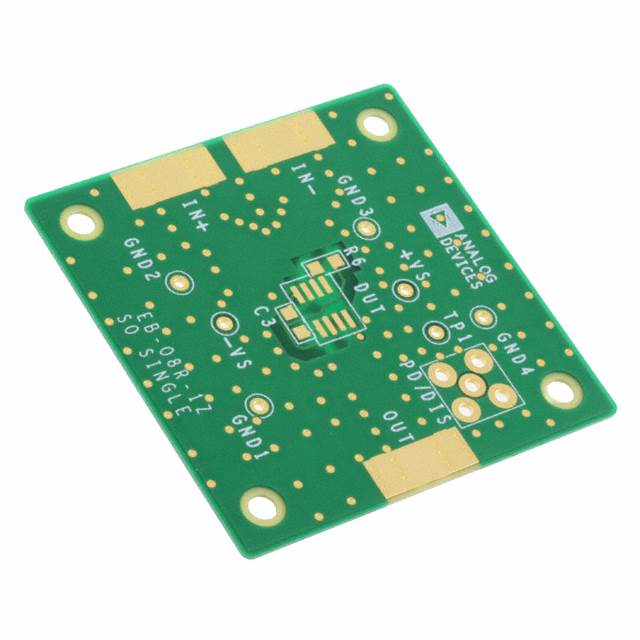

Analog Devices AD8009AR-EBZ	Bare (Unpopulated)	8-SOIC Package	Current Feedback	Board(s)		1 - Single
Analog Devices AD8009JRT-REEL7			Current Feedback				845 MHz	16 mA	5500 V/µs	SC-74A SOT-753			Surface Mount	175 mA	5 V	50 µA	SOT-23-5	1	2 mV	70 °C	0 °C	12 V
Analog Devices AD8009AR-REEL			Current Feedback				1 GHz	16 mA	5500 V/µs	8-SOIC	3.9 mm	0.154 in	Surface Mount	175 mA	5 V	50 µA	8-SOIC	1	2 mV	85 °C	-40 °C	12 V
Analog Devices AD8009JRT-REEL			Current Feedback				845 MHz	16 mA	5500 V/µs	SC-74A SOT-753			Surface Mount	175 mA	5 V	50 µA	SOT-23-5	1	2 mV	70 °C	0 °C	12 V
Analog Devices AD8009AR			Current Feedback				1 GHz	16 mA	5500 V/µs	8-SOIC	3.9 mm	0.154 in	Surface Mount	175 mA	5 V	50 µA	8-SOIC	1	2 mV	85 °C	-40 °C	12 V
