1650F Series
Manufacturer: Hammond Manufacturing
Beta
⌘K

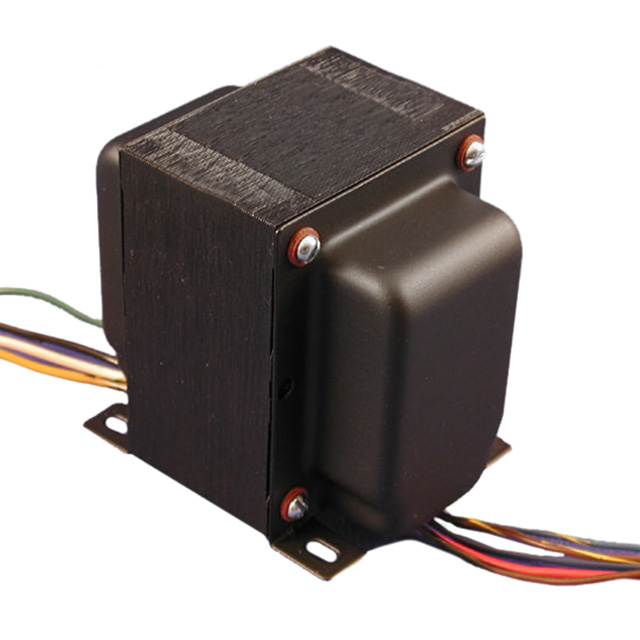

AUDIO TRANSFORMER 2000VRMS 9 TERMINAL WIRE LEAD FLANGE MOUNT
| Part | Weight [custom] | Weight [custom] | Impedance - Primary (Ohms) | Power Level | Frequency Range [Min] | Frequency Range [Max] | Voltage - Isolation | Transformer Type | Termination Style | DC Resistance (DCR) - Secondary | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Primary | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Frequency Response | Impedance - Secondary (Ohms) | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 1.8 kg | 4 lbs | 7.6kCT | 25 W | 30 Hz | 30 kHz | 2000 V | Push-Pull Audiophile Ultra-Linear - Tube Output | Wire Leads | 210 mOhm 239 mOhm 309 mOhm | 102.8 Ohm | 92.16 Ohm | 3.5 " | 63.5 mm | 63.5 mm | 88.9 mm | 1 dB | 4 Ohms 8 Ohms 16 Ohms | Chassis Mount | 3.06 in | 77.72 mm |
