DF61Y Series

Catalog

CONN HEADER, SMT, GOLD, 2POS 2.2

Part	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Shrouding	Material Flammability Rating	Contact Material	Current Rating (Amps)	Connector Type	Features	Number of Positions	Voltage Rating	Termination	Insulation Color	Number of Positions Loaded	Fastening Type	Style	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Contact Termination	Pitch	Pitch	Color
Hirose Electric Co Ltd DF61Y-2P-2.2V(75)	1	Rectangular	-40 C	105 ░C	Liquid Crystal Polymer (LCP)	Shrouded - 3 Wall	UL94 V-0	Brass	Varies by Wire Gauge	Header	Solder Retention	2	350 VAC	Solder	Natural	All	Swing Lock	Board to Cable/Wire	0.087 in	2.2 mm	Surface Mount	2 mm	0.079 in	Tab
Hirose Electric Co Ltd DF61Y-2P-2.2V(23)	1	Rectangular	-40 C	105 ░C	Liquid Crystal Polymer (LCP)	Shrouded - 3 Wall	UL94 V-0	Brass	Varies by Wire Gauge	Header	Solder Retention	2	350 VAC	Solder	Natural	All	Swing Lock	Board to Cable/Wire	0.087 in	2.2 mm	Surface Mount	2 mm	0.079 in	Male Blade	39.4 µin	1 µm	Tin

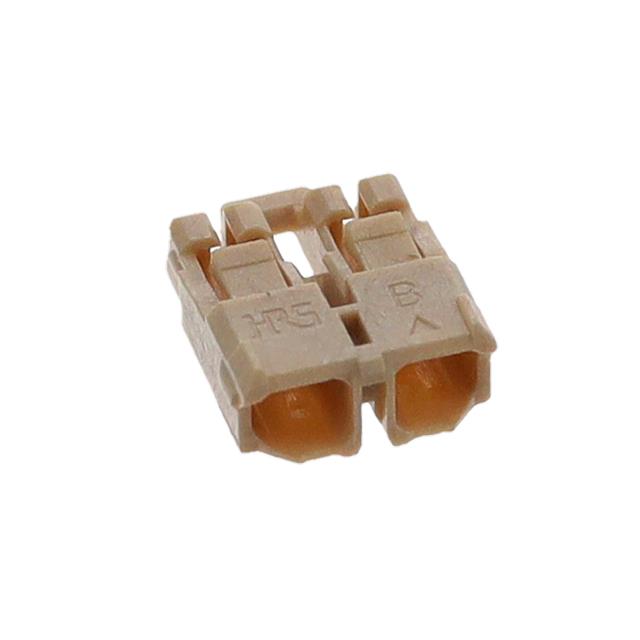

Hirose Electric Co Ltd DF61Y-2S-2.2C(13)	1		-40 C	105 ░C	Liquid Crystal Polymer (LCP)					Receptacle		2									Free Hanging (In-Line)			Female Socket				Crimp	2.2 mm	0.087 in	Natural
