TPS65282 Series
Manufacturer: Texas Instruments
Beta
⌘K
4.5V TO 18V INPUT, 4A OUTPUT SYNCHRONOUS BUCK CONVERTER WITH DUAL POWER DISTRIBUTION SWITCHES
| Part | Package / Case | Number of Outputs | Current - Output (Max) [Max] | Rds On (Typ) | Features | Supplier Device Package | Output Type | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Ratio - Input:Output | Output Configuration | Voltage - Supply (Vcc/Vdd) | Fault Protection | Switch Type | Operating Temperature [Min] | Operating Temperature [Max] | Board Type | Supplied Contents | Outputs and Type | Outputs and Type | Main Purpose | Regulator Topology | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Contents | Utilized IC / Part | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 24-VFQFN Exposed Pad | 2 | 2.7 A | 100 mOhm | Slew Rate Controlled Status Flag | 24-VQFN (4x4) | N-Channel | Surface Mount | 4.5 V | 18 V | On/Off | 1:1 | High Side | Not Required | Current Limiting (Adjustable) Over Temperature UVLO | USB Switch | -40 C | 125 °C | |||||||||||||

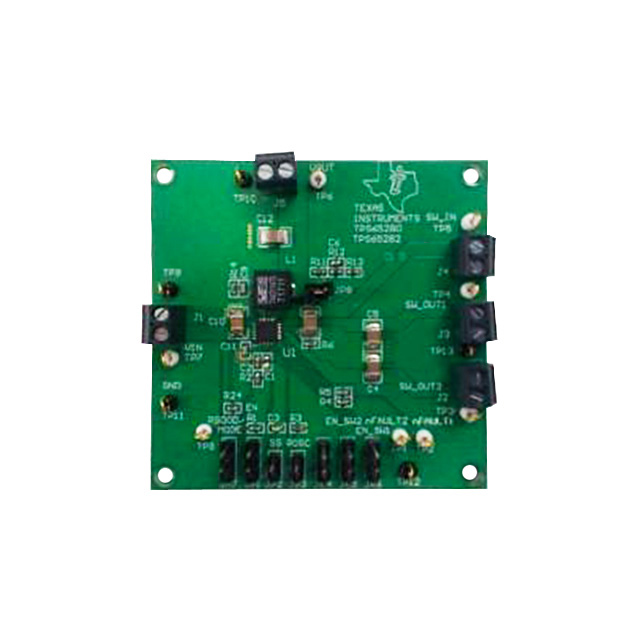

 Texas Instruments | Fully Populated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | DC/DC Step Down | Buck | 600 kHz | 6 V | 2.5 V | 5 V | Board(s) | TPS65282 | 4 A |
