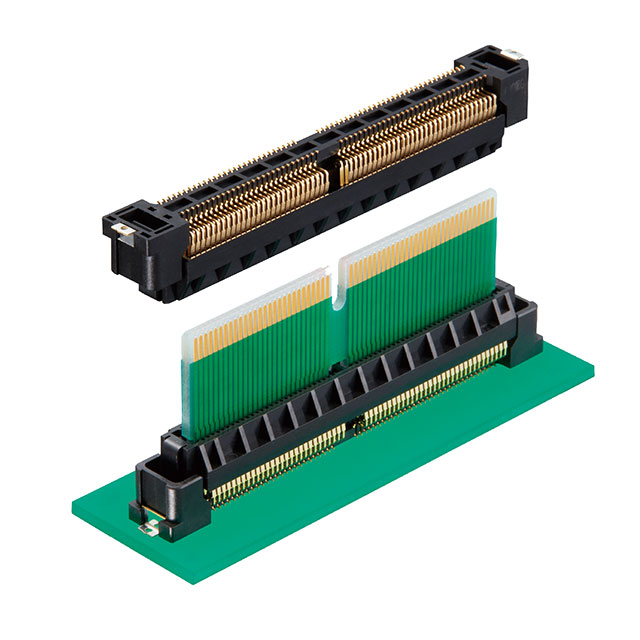

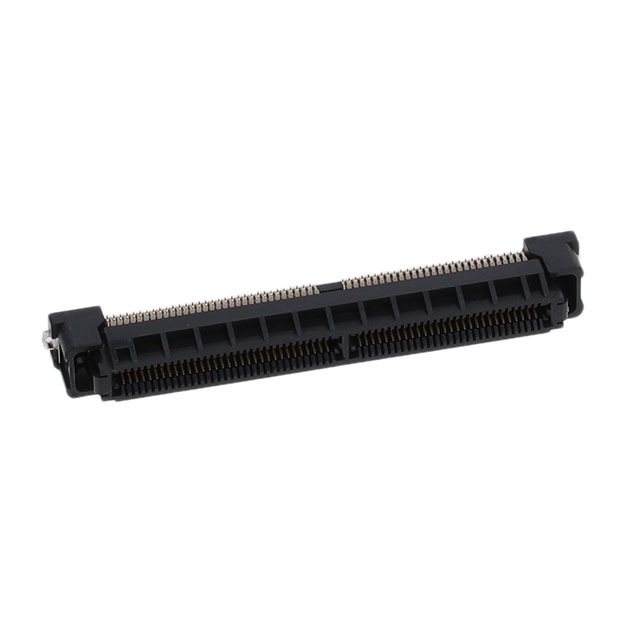

FX27 Series
Standard Card Edge Connectors 0.8mm Receptacle 40 Pos SMT Straight
Manufacturer: Hirose Electric Co Ltd
Catalog
Standard Card Edge Connectors 0.8mm Receptacle 40 Pos SMT Straight
Beta
⌘K
Standard Card Edge Connectors 0.8mm Receptacle 40 Pos SMT Straight
Standard Card Edge Connectors 0.8mm Receptacle 40 Pos SMT Straight
Standard Card Edge Connectors 0.8mm Receptacle 40 Pos SMT Straight
| Part | Material - Insulation | Card Type | Read Out | Color | Pitch | Pitch | Features | Contact Material | Number of Rows [custom] | Gender | Mounting Type | Termination | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Contact Finish | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Nylon Polyamide (PA) | PCI Express™ | Dual | Black | 0.8 mm | 0.031 in | Board Guide Pick and Place Solder Retention | Copper Alloy | 2 | Female | Surface Mount | Solder | 120 | -55 C | 85 °C | 60 | Gold | |
 Hirose Electric Co Ltd | Nylon Polyamide (PA) | PCI Express™ | Dual | Black | 0.8 mm | 0.031 in | Board Guide Pick and Place Solder Retention | Copper Alloy | 2 | Female | Surface Mount | Solder | 40 | -55 C | 85 °C | Gold | 20 Bay/Row | |
Hirose Electric Co Ltd | Nylon Polyamide (PA) | PCI Express™ | Dual | Black | 0.8 mm | 0.031 in | Board Guide Pick and Place Solder Retention | Copper Alloy | 2 | Female | Surface Mount | Solder | 60 | -55 C | 85 °C | Gold | 30 | |
Hirose Electric Co Ltd | Nylon Polyamide (PA) | PCI Express™ | Dual | Black | 0.8 mm | 0.031 in | Board Guide Pick and Place Solder Retention | Copper Alloy | 2 | Female | Surface Mount | Solder | 100 | -55 C | 85 °C | Gold | 50 | |
Hirose Electric Co Ltd | Nylon Polyamide (PA) | PCI Express™ | Dual | Black | 0.8 mm | 0.031 in | Board Guide Pick and Place Solder Retention | Copper Alloy | 2 | Female | Surface Mount | Solder | 80 | -55 C | 85 °C | 40 | Gold |
