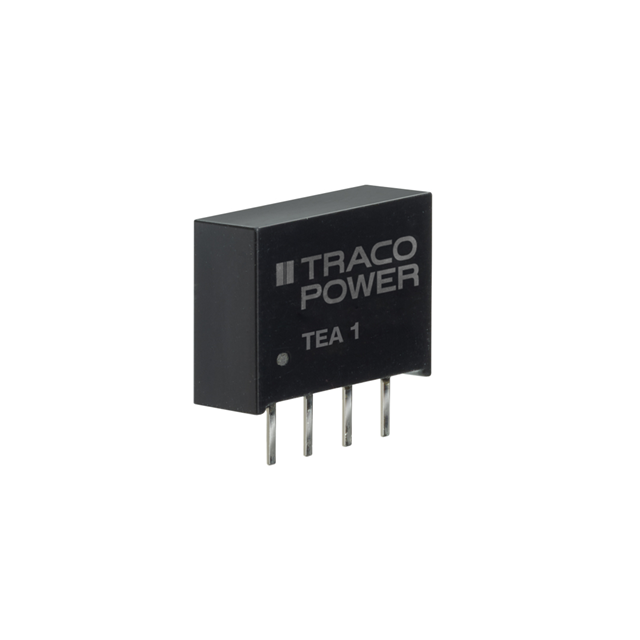

TEA 1 Series
Isolated DC/DC Converters - Through Hole 1W 4.5-5.5Vin 5Vout 200mA unreg SIP-4
Manufacturer: Traco Power
Catalog
Isolated DC/DC Converters - Through Hole 1W 4.5-5.5Vin 5Vout 200mA unreg SIP-4
Beta
⌘K
Isolated DC/DC Converters - Through Hole 1W 4.5-5.5Vin 5Vout 200mA unreg SIP-4
Isolated DC/DC Converters - Through Hole 1W 4.5-5.5Vin 5Vout 200mA unreg SIP-4
Isolated DC/DC Converters - Through Hole 1W 4.5-5.5Vin 5Vout 200mA unreg SIP-4
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Mounting Type | Voltage - Isolation | Efficiency | Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 11.7 mm | 0.46 in | 10.2 mm | 0.4 " | 0.24 " | 6 mm | 200 mA | Through Hole | 1.5 kV | 78 % | Isolated Module | 5 V | 4.5 V | ITE (Commercial) | 5.5 V | 1 | 95 °C | -40 °C | 4-SIP Module | ||
 Traco Power | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 200 mA | Through Hole | 1.5 kV | 78 % | Isolated Module | 5 V | 4.5 V | ITE (Commercial) | 5.5 V | 1 | 95 °C | -40 °C | 7-SIP Module 4 Leads | 6 mm | 10 mm | ||
 Traco Power | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 200 mA | Through Hole | 4000 V | 78 % | Isolated Module | 5 V | 4.5 V | ITE (Commercial) | 5.5 V | 1 | 95 °C | -40 °C | 7-SIP Module 4 Leads | 6 mm | 10 mm |
