DF57 Series

Catalog

CONN HEADER SMD 2POS 2.4MM

Part	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Style	Contact Type	Features	Insulation Material	Mounting Type	Fastening Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Number of Rows	Number of Positions	Number of Positions Loaded	Contact Material	Termination	Insulation Color	Insulation Height	Insulation Height	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Note	Pitch	Pitch	Color
Hirose Electric Co Ltd DF57-2P-2.4V(21)	UL94 V-0	85 °C	-35 °C	Unshrouded	Board to Cable/Wire	Male Blade	Solder Retention	Liquid Crystal Polymer (LCP)	Surface Mount	Swing Lock	Tin	2.4 mm	0.094 in	Header	Rectangular	1	2	All	Brass	Solder	Black	0.055 in	1.4 mm

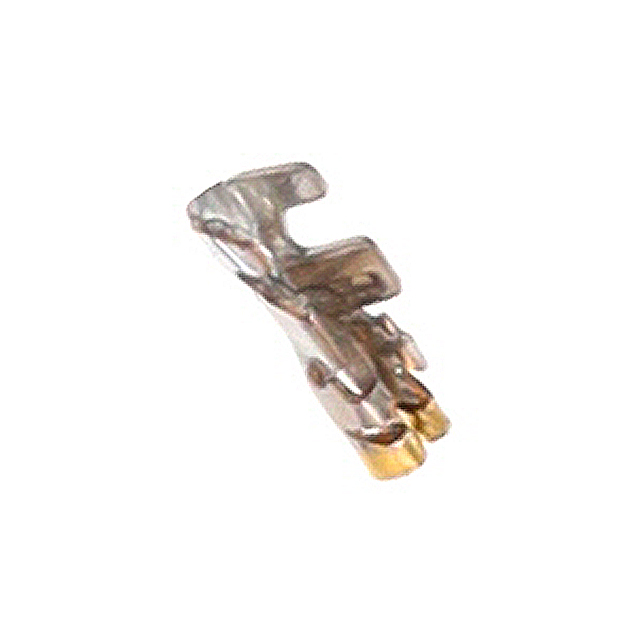

Hirose Electric Co Ltd DF57-2830SCFA																								Socket	1 Ám	39.4 Áin	Crimp	30 AWG	27.5 AWG	Tin

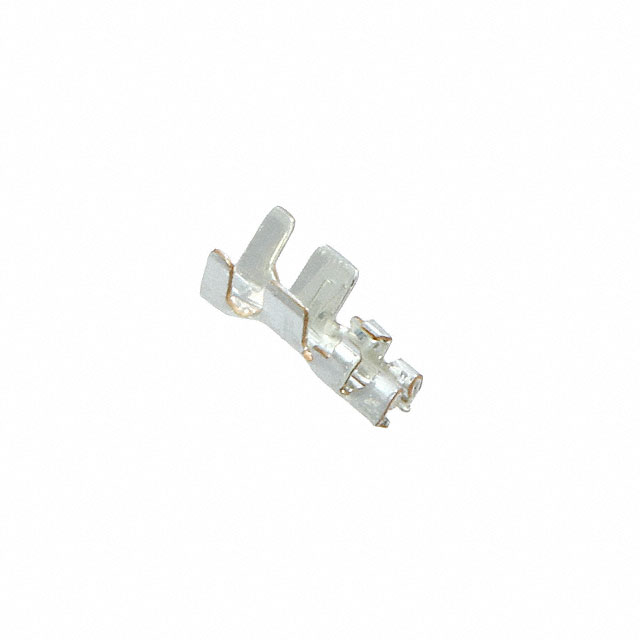

Hirose Electric Co Ltd DF57-2628SCF																								Socket	1 Ám	39.4 Áin	Crimp			Tin

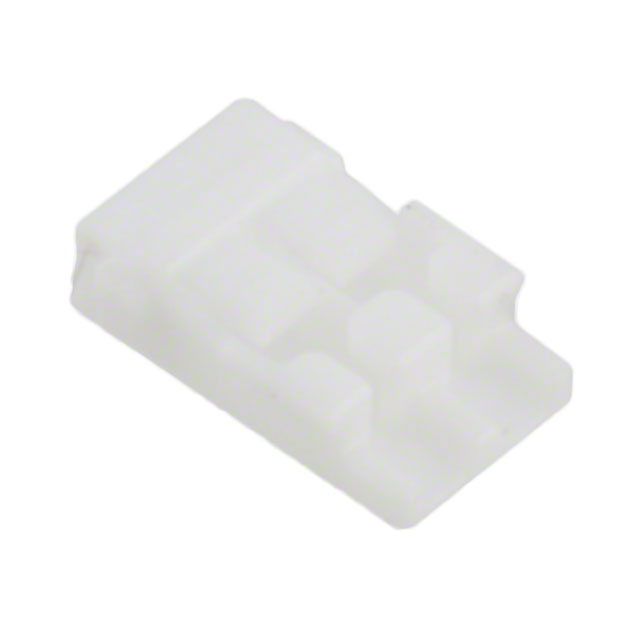

Hirose Electric Co Ltd DF57-2S-1.2C(09)						Female Socket			Free Hanging (In-Line)	Swing Lock				Receptacle		1	2										Crimp				Contacts Not Included	0.047 in	1.2 mm
Hirose Electric Co Ltd DF57-2P-2.4V(23)	UL94 V-0	85 °C	-35 °C	Unshrouded	Board to Cable/Wire	Male Blade	Solder Retention	Liquid Crystal Polymer (LCP)	Surface Mount	Swing Lock	Tin	2.4 mm	0.094 in	Header	Rectangular	1	2	All	Brass	Solder	Black	0.055 in	1.4 mm

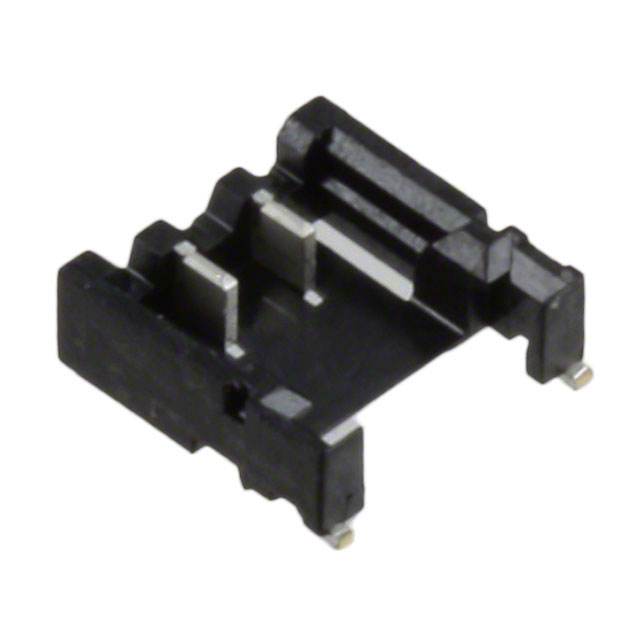

Hirose Electric Co Ltd DF57-2P-1.2V(21)	UL94 V-0	85 °C	-35 °C	Unshrouded	Board to Cable/Wire	Male Blade	Solder Retention	Liquid Crystal Polymer (LCP)	Surface Mount	Swing Lock	Tin	1.2 mm	0.047 in	Header	Rectangular	1	2	All	Brass	Solder	Black	0.055 in	1.4 mm

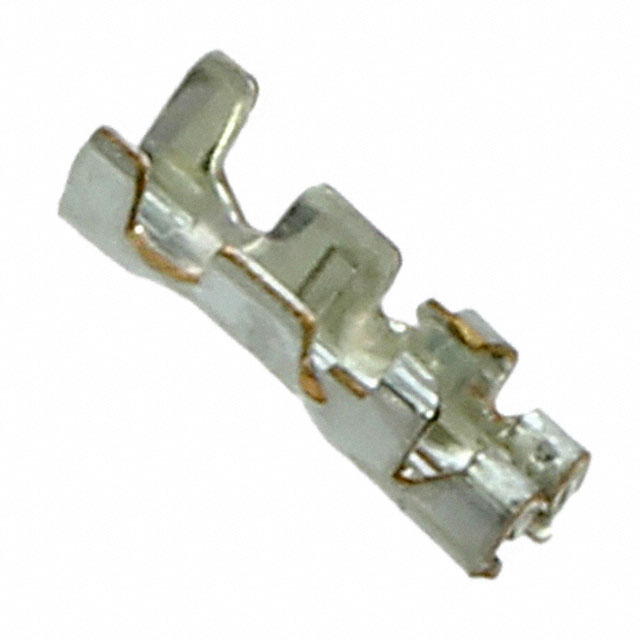

Hirose Electric Co Ltd DF57-3234SCF																								Socket	1 Ám	39.4 Áin	Crimp	34 AWG	32 AWG	Tin

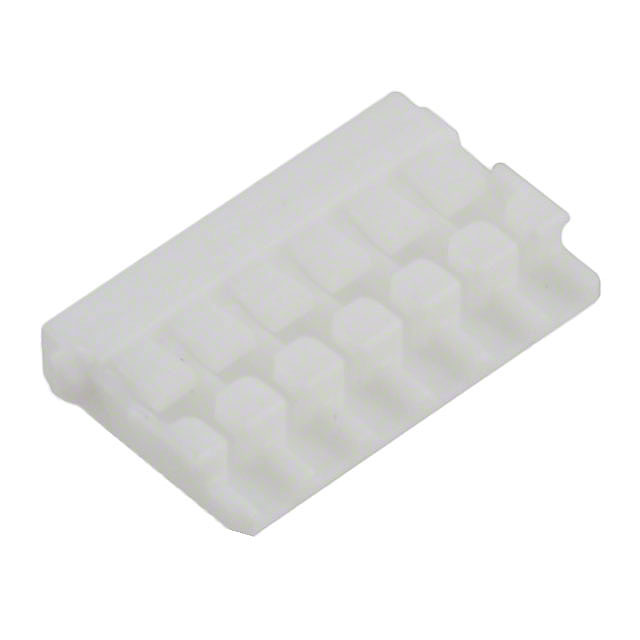

Hirose Electric Co Ltd DF57-6S-1.2C						Female Socket			Free Hanging (In-Line)	Swing Lock				Receptacle		1	6										Crimp				Contacts Not Included	0.047 in	1.2 mm	White

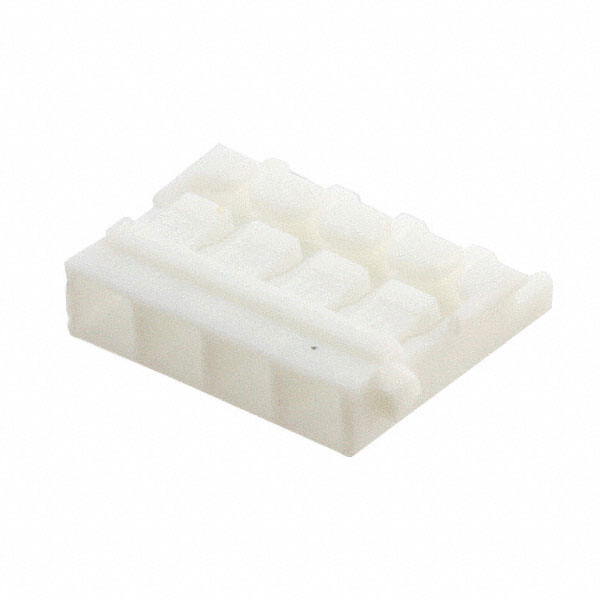

Hirose Electric Co Ltd DF57-4S-1.2C(09)						Female Socket			Free Hanging (In-Line)	Swing Lock				Receptacle		1	4										Crimp				Contacts Not Included	0.047 in	1.2 mm

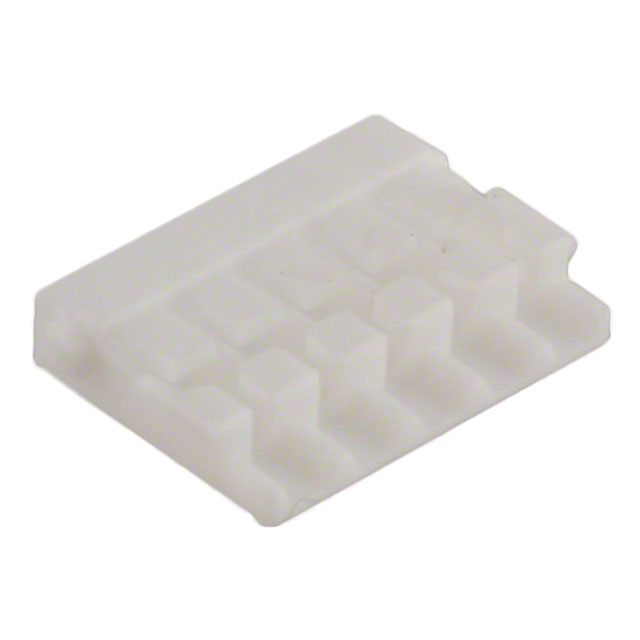

Hirose Electric Co Ltd DF57-5S-1.2C(09)						Female Socket			Free Hanging (In-Line)	Swing Lock				Receptacle		1	5										Crimp				Contacts Not Included	0.047 in	1.2 mm
