BXRC-30 Series
Manufacturer: BRIDGELUX
Beta
⌘K

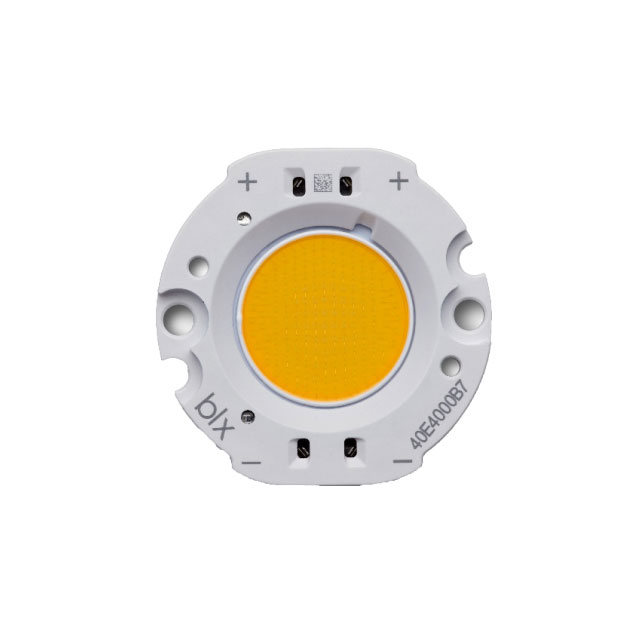

LED COB VERO WHT STARBRD 3000K
| Part | Height [z] | Light Emitting Surface (LES) [diameter] | Type | Current - Test | Features | Lumens/Watt @ Current - Test | Viewing Angle | Color | Current - Max [Max] | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) | Configuration | Temperature - Test | Lens Type | Size / Dimension [diameter] | CCT (K) | CCT (K) | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 1.9 mm | 9.9 mm | Chip On Board (COB) | 350 mA | With Connector | 120 lm/W | 120 ° | Warm White | 700 mA | 1120 lm | 26.7 V | 80 | Starboard | 25 °C | Flat | 20 mm | 3000 K | ||
 BRIDGELUX | 1.9 mm | 29.1 mm | Chip On Board (COB) | 1.3 A | 136 lm/W | 120 ° | Warm White | 4.75 A | 11796 lm | 66.7 V | 97 | Round | 25 °C | Flat | 49.2 mm | 3000 K | 3-Step MacAdam Ellipse | ||
 BRIDGELUX | 1.9 mm | 29.2 mm | Chip On Board (COB) | 1.8 A | 133 lm/W | 120 ° | Warm White | 3.6 A | 12437 lm | 52 V | 90 | Round | 25 °C | Flat | 49.2 mm | 3000 K | |||
 BRIDGELUX | 10 mm | Chip On Board (COB) | 300 mA | 120 ° | Warm White | 1 A | 30.7 V | 97 | Starboard | 25 °C | Flat | 20 mm | 3000 K | 3-Step MacAdam Ellipse | 1.8 mm | ||||
 BRIDGELUX | 1.9 mm | 9.9 mm | Chip On Board (COB) | 350 mA | With Connector | 129 lm/W | 120 ° | Warm White | 700 mA | 1172 lm | 26 V | 90 | Starboard | 25 °C | Flat | 20 mm | 3000 K | 3-Step MacAdam Ellipse | |
BRIDGELUX | 1.9 mm | 9.9 mm | Chip On Board (COB) | 360 mA | With Connector | 155 lm/W | 120 ° | Warm White | 720 mA | 1936 lm | 34.8 V | 80 | Starboard | 25 °C | Flat | 20 mm | 3000 K | 3-Step MacAdam Ellipse | |
 BRIDGELUX | 3.6 mm | 29.1 mm | Chip On Board (COB) | 1.3 A | 193 lm/W | 120 ° | Warm White | 4.75 A | 16756 lm | 66.7 V | 70 | Round | 25 °C | Flat | 49.2 mm | 3000 K | 4-Step MacAdam Ellipse | ||
 BRIDGELUX | 3.6 mm | 18.5 mm | Chip On Board (COB) | 1.05 A | 177 lm/W | 120 ° | Warm White | 3 A | 6317 lm | 33.9 V | 80 | Round | 25 °C | Flat | 36.2 mm | 3000 K | 3-Step MacAdam Ellipse | ||
BRIDGELUX | 1.9 mm | 9.9 mm | Chip On Board (COB) | 350 mA | With Connector | 110 lm/W | 120 ° | Warm White | 700 mA | 1021 lm | 26.5 V | 90 | Starboard | 25 °C | Flat | 20 mm | 3000 K | ||
 BRIDGELUX | 1.9 mm | 9.9 mm | Chip On Board (COB) | 350 mA | With Connector | 98 lm/W | 120 ° | Warm White | 700 mA | 915 lm | 26.7 V | 90 | Starboard | 25 °C | Flat | 20 mm | 3000 K | 3-Step MacAdam Ellipse |
