A2-1PA-2 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER VERT 1POS
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Shape | Contact Length - Mating | Contact Length - Mating | Termination | Fastening Type | Contact Length - Post | Contact Length - Post | Voltage Rating | Contact Type | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Finish - Post | Style | Shrouding | Overall Contact Length | Overall Contact Length | Mounting Type | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Color | Current Rating (Amps) | Contact Material | Number of Rows | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

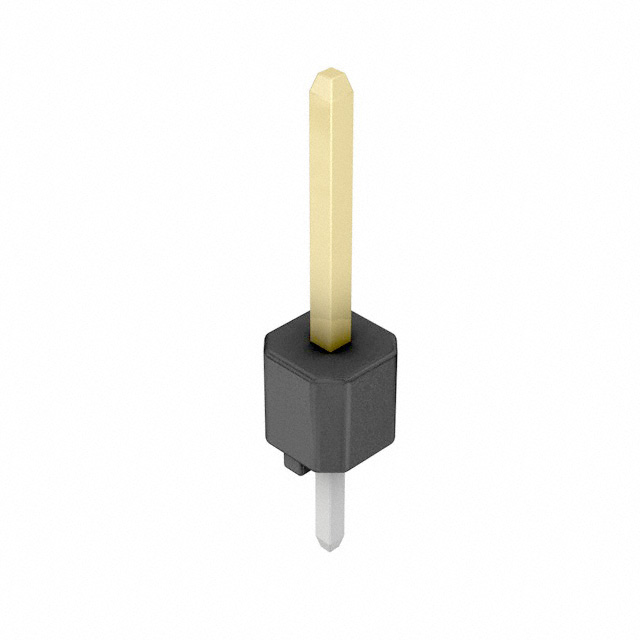

 Hirose Electric Co Ltd | 78.7 µin | 2 µm | 1 | Header | -55 C | 85 °C | Gold | Square | 6 mm | 0.236 in | Solder | Push-Pull | 0.118 in | 3 mm | 200 V | Male Pin | Polybutylene Terephthalate (PBT) | 8 µin | 0.203 µm | UL94 V-0 | Tin | Board to Board Cable | Unshrouded | 11.54 mm | 0.454 " | Through Hole | All | 0.1 in | 2.54 mm | Black | 3 A | Brass | 1 | ||

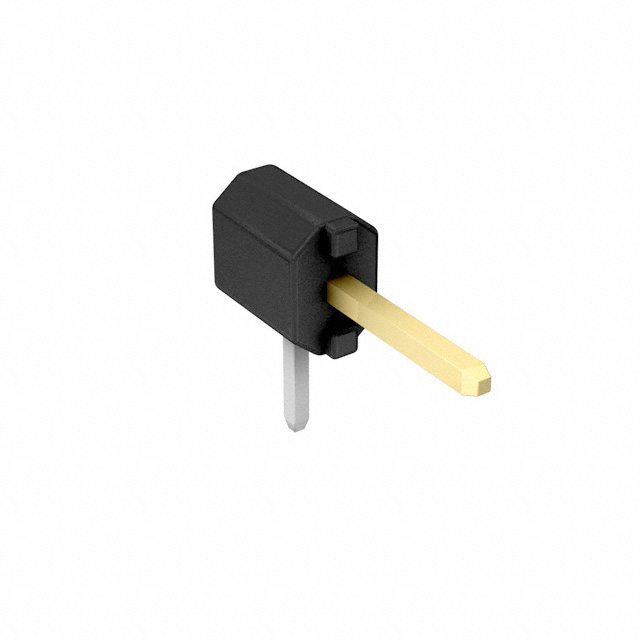

 Hirose Electric Co Ltd | 78.7 µin | 2 µm | 1 | Header | -55 C | 85 °C | Gold | Square | 6 mm | 0.236 in | Solder | Push-Pull | 0.138 in | 3.5 mm | 200 V | Male Pin | Polybutylene Terephthalate (PBT) | 8 µin | 0.203 µm | UL94 V-0 | Tin | Board to Board Cable | Unshrouded | Right Angle Through Hole | All | Black | 3 A | Brass | 1 | 4 mm | 0.157 in |
