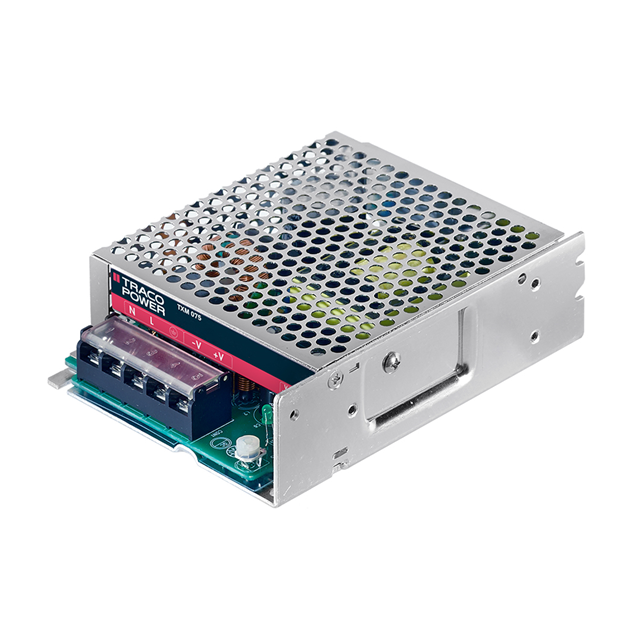

TXM 075 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 6A 72W 5-PIN
| Part | Features | Approval Agency | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Voltage - Output 1 | Number of Outputs | Applications | Type | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Adjustable Output Universal Input | CE cURus | 6 A | 264 VAC 370 VDC | 90 VAC 127 VDC | 3000 V | 3.9 " | 129 mm | 1.5 in | 38.1 mm | 5.08 " | 99.1 mm | 72 W | 12 V | 1 | ITE (Commercial) | Enclosed | 85 % | 70 °C | -25 °C | Chassis Mount | |
 Traco Power | Adjustable Output Universal Input | CE cURus | 3.2 A | 264 VAC 370 VDC | 90 VAC 127 VDC | 3000 V | 3.9 " | 129 mm | 1.5 in | 38.1 mm | 5.08 " | 99.1 mm | 77 W | 24 V | 1 | ITE (Commercial) | Enclosed | 88 % | 70 °C | -25 °C | Chassis Mount | |
Traco Power | Adjustable Output Universal Input | CE cURus | 5 A | 264 VAC 370 VDC | 90 VAC 127 VDC | 3000 V | 3.9 " | 129 mm | 1.5 in | 38.1 mm | 5.08 " | 99.1 mm | 75 W | 15 V | 1 | ITE (Commercial) | Enclosed | 86 % | 70 °C | -25 °C | Chassis Mount | |
Traco Power | Adjustable Output Universal Input | CE cURus | 12 A | 264 VAC 370 VDC | 90 VAC 127 VDC | 3000 V | 3.9 " | 129 mm | 1.5 in | 38.1 mm | 5.08 " | 99.1 mm | 60 W | 5 V | 1 | ITE (Commercial) | Enclosed | 80 % | 70 °C | -25 °C | Chassis Mount |
