VB027 Series
Manufacturer: STMicroelectronics
Beta
⌘K

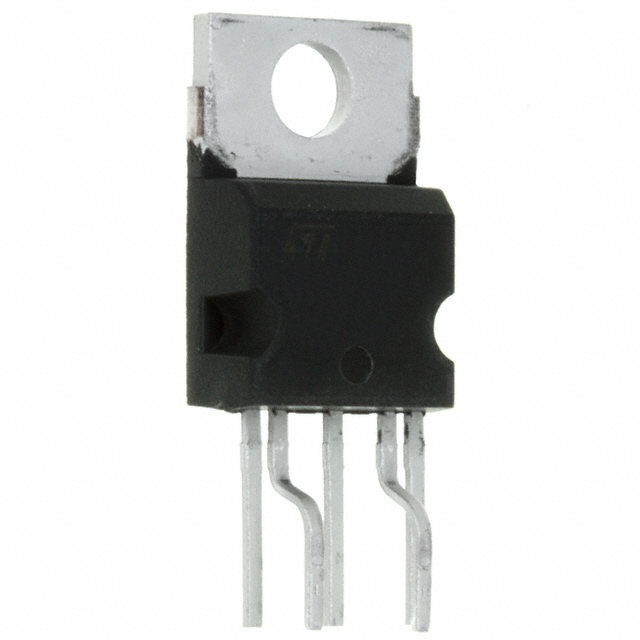

IC PWR DRVR BIPOLAR 5PENTAWATTHV
| Part | Switch Type | Ratio - Input:Output | Voltage - Supply (Vcc/Vdd) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Interface | Supplier Device Package | Features | Fault Protection | Output Type | Output Configuration | Package / Case | Number of Outputs | Mounting Type | Input Type | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | General Purpose | 1:1 | Not Required | -40 °C | 150 °C | 4.5 V | 5.5 V | Parallel | 5-PENTAWATT HV | Status Flag | Over Temperature | Bipolar | Low Side | Pentawatt-5 HV (Bent and Staggered Leads) | 1 | Through Hole | Non-Inverting | |
STMicroelectronics | General Purpose | 1:1 | Not Required | -40 °C | 150 °C | 4.5 V | 5.5 V | Parallel | 5-PENTAWATT HV | Status Flag | Over Temperature | Bipolar | Low Side | Pentawatt-5 HV (Bent and Staggered Leads) | 1 | Through Hole | Non-Inverting | |
STMicroelectronics | General Purpose | 1:1 | Not Required | -40 °C | 150 °C | 4.5 V | 5.5 V | Parallel | 5-PENTAWATT HV | Status Flag | Over Temperature | Bipolar | Low Side | Pentawatt-5 HV (Bent and Staggered Leads) | 1 | Through Hole | Non-Inverting | |
 STMicroelectronics | General Purpose | 1:1 | Not Required | -40 °C | 150 °C | 4.5 V | 5.5 V | Parallel | 10-PowerSO | Status Flag | Over Temperature | Bipolar | Low Side | PowerSO-10 Exposed Bottom Pad | 1 | Surface Mount | Non-Inverting | 8 A |
STMicroelectronics | General Purpose | 1:1 | Not Required | -40 °C | 150 °C | 4.5 V | 5.5 V | Parallel | 10-PowerSO | Status Flag | Over Temperature | Bipolar | Low Side | PowerSO-10 Exposed Bottom Pad | 1 | Surface Mount | Non-Inverting | 8 A |
