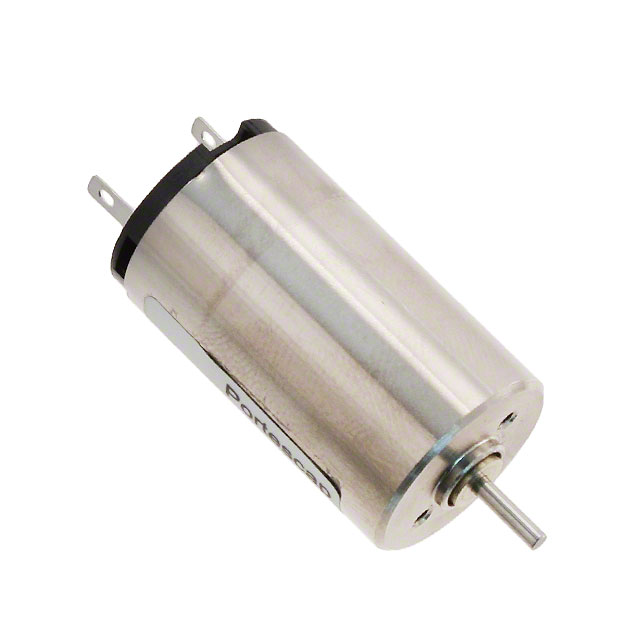

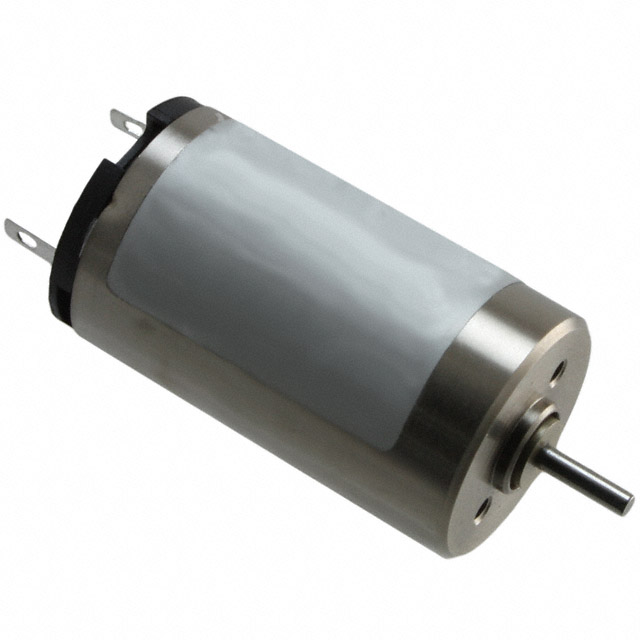

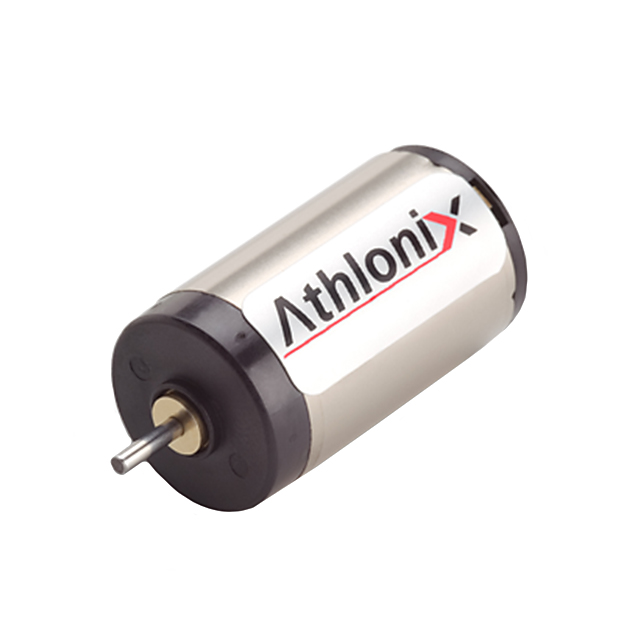

16N78 Series
Manufacturer: Portescap
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
STANDARD MOTOR 10000 RPM 6V
| Part | Weight | Termination Style | Diameter - Shaft | Mounting Hole Spacing | Voltage - Rated | Length - Shaft and Bearing | RPM | Type | Function | Motor Type | Torque - Rated (oz-in) | Torque - Rated (mNm) | Power - Rated | Size / Dimension Shape | Size / Dimension Diameter | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.053 lb | Solder Tab | 0.059 in | 0.354 in | 6 VDC | 0.295 in | 10000 RPM | DC Motor | Standard | Brushed | 0.977 oz-in | 6.9 mNm | 5.4 W | Round | 0.629 in | 85 °C | -30 °C |
 Portescap | 0.053 lb | Solder Tab | 0.059 in | 0.354 in | 12 VAC | 0.295 in | 10000 RPM | DC Motor | Standard | Brushed | 0.94 oz-in | 6.6 mNm | 5.2 W | Round | 0.629 in | 85 °C | -30 °C |
 Portescap | 0.053 lb | Solder Tab | 0.059 in | 0.354 in | 18 VAC | 0.295 in | 10000 RPM | DC Motor | Standard | Brushed | 0.878 oz-in | 6.2 mNm | 4.9 W | Round | 0.629 in | 85 °C | -30 °C |
