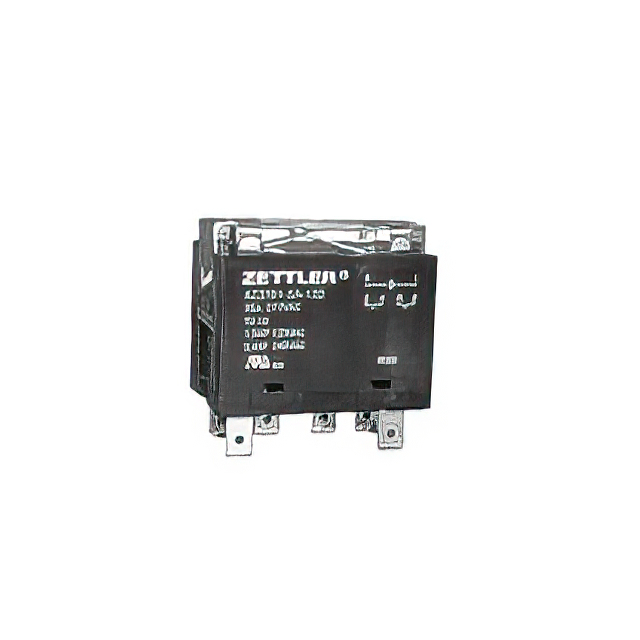

AZ2701-1A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 48V
| Part | Coil Resistance | Coil Voltage | Contact Material | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Coil Current | Coil Insulation | Mounting Type | Switching Voltage [Max] | Approval Agency | Contact Form | Load - Max Switching | Must Operate Voltage | Contact Rating (Current) | Release Time | Coil Type | Termination Style | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 1.2 kOhms | 48 VAC | Silver Cadmium Oxide (AgCdO) | 7.2 VAC | 85 °C | -40 C | 30 ms | 40 mA | Class B | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 38.4 VAC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
American Zettler | 6.3 kOhms | 110 VDC | Silver Tin Oxide (AgSnO) | 5.5 VDC | 105 ░C | -40 C | 30 ms | 17.5 mA | Class F | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 82.5 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
American Zettler | 5217 Ohms | 120 VAC | Silver Cadmium Oxide (AgCdO) | 18 VAC | 85 °C | -40 C | 30 ms | 23 mA | Class B | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 96 VAC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
 American Zettler | 75 Ohms | 12 VDC | Silver Cadmium Oxide (AgCdO) | 0.6 VDC | 85 °C | -40 C | 30 ms | 160 mA | Class B | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 9 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
American Zettler | 5217 Ohms | 120 VAC | Silver Tin Oxide (AgSnO) | 18 VAC | 105 ░C | -40 C | 30 ms | 23 mA | Class F | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 96 VAC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
American Zettler | 1.2 kOhms | 48 VDC | Silver Tin Oxide (AgSnO) | 2.4 VDC | 105 ░C | -40 C | 30 ms | 40 mA | Class F | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 36 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
American Zettler | 5 Ohms | Silver Cadmium Oxide (AgCdO) | 0.15 VDC | 85 °C | -40 C | 30 ms | 600 mA | Class B | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 2.25 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose | |
American Zettler | 5 Ohms | Silver Tin Oxide (AgSnO) | 0.15 VDC | 105 ░C | -40 C | 30 ms | 600 mA | Class F | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 2.25 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose | |
American Zettler | 75 Ohms | 12 VDC | Silver Tin Oxide (AgSnO) | 0.6 VDC | 105 ░C | -40 C | 30 ms | 160 mA | Class F | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 9 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
American Zettler | 1.2 kOhms | 48 VDC | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 85 °C | -40 C | 30 ms | 40 mA | Class B | Chassis Mount | 150 VDC 400 VAC | CUR TUV UL | SPST-NO (1 Form A) | 840 W 8310 VA | 36 VDC | 30 A | 30 ms | Non Latching | Plug In Quick Connect - 0.250" (6.3mm) | General Purpose |
