05585 Series

Catalog

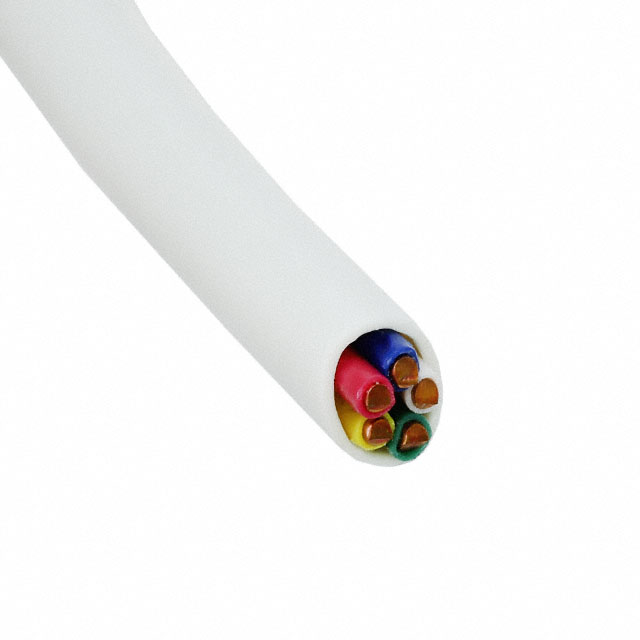

CABLE 5COND 18AWG WHITE 100'

Part	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Number of Conductors	Wire Gauge	Usage	Jacket Color	Conductor Material	Conductor Strand	Length [x]	Length [x]	Voltage	Length	Length	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings
Prysmian Group 05585.R5.02	Multi-Conductor	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG	Thermostat	White	Copper Bare	Solid	100 ft	30.5 m	150 V	76.2 m	250 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	60 °C	0.203 mm	0.008 in
Prysmian Group 05585.41.02	Multi-Conductor	0.181 in	4.6 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG		White	Copper Annealed Bare	Solid			150 V	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	0.203 mm	0.008 in
Prysmian Group 05585.R5.02	Multi-Conductor	0.158 in	4.01 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG	Thermostat	White	Copper Annealed Bare Copper Bare	Solid	100 ft	30.5 m	150 V	15.24 m 76.2 m	50 ft 250 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	60 °C 105 ░C	0.203 mm	0.008 in	UL Style CL2
Prysmian Group 05585.41.02	Multi-Conductor	0.181 in	4.6 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG		White	Copper Annealed Bare	Solid			150 V	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	0.203 mm	0.008 in
Prysmian Group 05585.15.08	Multi-Conductor	0.181 in	4.6 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG	Thermostat	Brown	Copper Bare	Solid			150 V	76.2 m	250 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	60 °C	0.203 mm	0.008 in
Prysmian Group 05585.15.08	Multi-Conductor	0.181 in	4.6 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG	Thermostat	Brown	Copper Bare	Solid			150 V	76.2 m	250 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	60 °C	0.203 mm	0.008 in
Prysmian Group 05585.66.02	Multi-Conductor	0.181 in	4.6 mm	Poly-Vinyl Chloride (PVC)	5	18 AWG	Thermostat	White	Copper Bare	Solid			150 V	15.24 m	50 ft	Poly-Vinyl Chloride (PVC)	-20 ░C	60 °C	0.203 mm	0.008 in
