6820PL Series

Catalog

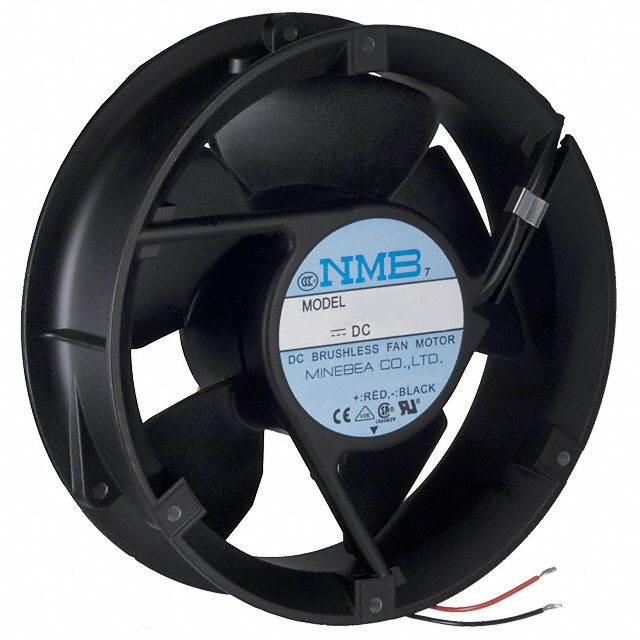

FAN AXIAL 172X50.8MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Air Flow	Air Flow	Size / Dimension [diameter]	Size / Dimension	Voltage - Rated	Noise	Static Pressure	Static Pressure	Width [y]	Weight	Weight	Fan Type	RPM	Approval Agency	Power (Watts)	Features
NMB TECHNOLOGIES 6820PL-04W-B40-D00	1.44 A	Aluminum	18 VDC	6 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	6.72 mł/min	240 CFM	172 mm	Round	12 VDC	58 dB(A)	0.622 in H2O	155 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	3350 RPM	CE CSA UL VDE	17.3 W
NMB TECHNOLOGIES 6820PL-05W-B49-D50	660 mA	Aluminum	30 V	12 VDC	Plastic	3 Wire Leads	70 °C	-10 °C	Ball	6.72 mł/min	240 CFM	172 mm	Round	24 VDC	58 dB(A)	0.622 in H2O	155 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	3350 RPM	CE CSA UL VDE	15.8 W	Speed Sensor (Tach)
NMB TECHNOLOGIES 6820PL-04W-B30-D00	1.15 A	Aluminum	18 VDC	6 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	6.3 m³/min	225 CFM	172 mm	Round	12 VDC	55 dB(A)	0.562 in H2O	140 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	3150 RPM	CE CSA UL VDE	13.8 W
NMB TECHNOLOGIES 6820PL-07W-B10-D00	0.18 A	Aluminum	60 V	25 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	5.04 mł/min	180 CFM	172 mm	Round	48 VDC	50 dB(A)	0.371 in H2O	92.5 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	2550 RPM	CE CSA UL VDE	8.64 W
NMB TECHNOLOGIES 6820PL-07W-B20-D00	0.23 A	Aluminum	60 V	25 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	5.6 mł/min	200 CFM	172 mm	Round	48 VDC	53 dB	0.472 in H2O	117.6 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	2850 RPM	CE CSA UL VDE	11 W
NMB TECHNOLOGIES 6820PL-05W-B20-D00	460 mA	Aluminum	30 V	12 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	5.6 mł/min	200 CFM	172 mm	Round	24 VDC	53 dB	0.472 in H2O	117.6 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	2850 RPM	CE CSA UL VDE	11 W
NMB TECHNOLOGIES 6820PL-05W-B30-D00	0.55 A	Aluminum	30 V	12 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	6.3 m³/min	225 CFM	172 mm	Round	24 VDC	55 dB(A)	0.562 in H2O	140 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	3150 RPM	CE CSA UL VDE	13.2 W
NMB TECHNOLOGIES 6820PL-04W-B20-D00		Aluminum	18 VDC	6 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	5.6 mł/min	200 CFM	172 mm	Round	12 VDC	53 dB	0.472 in H2O	117.6 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	2850 RPM	CE CSA UL VDE	12 W
NMB TECHNOLOGIES 6820PL-05W-B70-D00	1.08 A	Aluminum	30 V	12 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	8.4 mł/min	300 CFM	172 mm	Round	24 VDC	63.2 dB	0.909 in H2O	226.5 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	4000 RPM	CE CSA UL VDE	25.9 W
NMB TECHNOLOGIES 6820PL-04W-B10-D00	800 mA	Aluminum	18 VDC	6 VDC	Plastic	2 Wire Leads	70 °C	-10 °C	Ball	5.04 mł/min	180 CFM	172 mm	Round	12 VDC	50 dB(A)	0.371 in H2O	92.5 Pa	50.8 mm	1.8 lbs	816.5 g	Tubeaxial	2550 RPM	CE CSA UL VDE	9.6 W
