C0745 Series
Manufacturer: Prysmian Group
Beta
⌘K

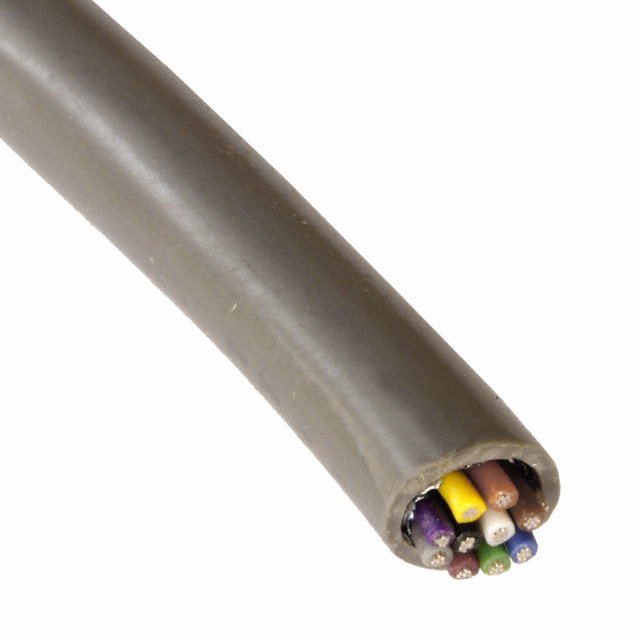

CABLE 10COND 24AWG GRAY SHLD
| Part | Conductor Insulation | Wire Gauge | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Number of Conductors [custom] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Length | Length | Shield Type | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Usage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Drain Wire | 10 | Gray | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | 152.4 m | 500 ft | Foil | Flexfoil® | 80 °C | -20 ░C | 0.245 " | 6.22 mm | 100 % | Computer | Copper Tinned |
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Drain Wire | 10 | Gray | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | 15.24 m 304.8 m | 50 ft 1000 ft | Foil | 105 ░C | -20 ░C | 0.245 " | 6.22 mm | Computer | Copper Tinned | ||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Drain Wire | 10 | Gray | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | 15.24 m 304.8 m | 50 ft 1000 ft | Foil | Flexfoil® | 80 °C 105 ░C | -20 ░C | 0.245 " | 6.22 mm | 100 % | Computer | Copper Tinned |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 24 AWG | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Drain Wire | 10 | Gray | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | 152.4 m | 500 ft | Foil | 105 ░C | -20 ░C | 0.245 " | 6.22 mm | Computer | Copper Tinned |
