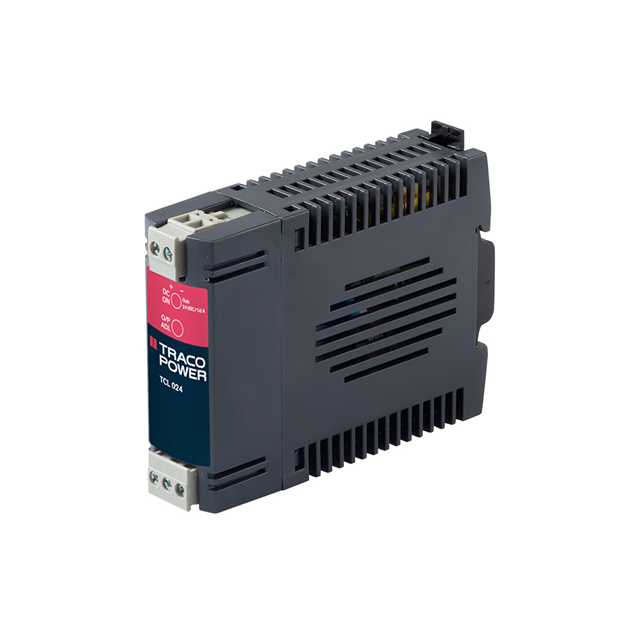

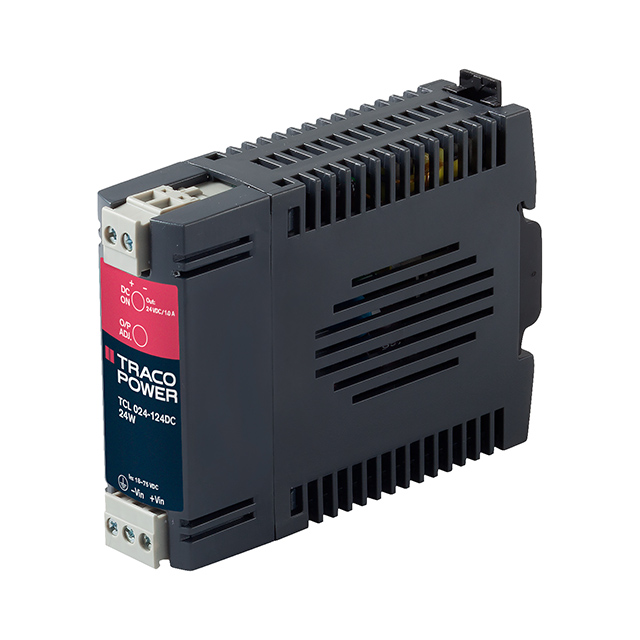

TCL 024 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 24W
| Part | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Applications | Efficiency | Current - Output (Max) [Max] | DC Voltage - Input (Min) [Min] | Power (Watts) | Input Type | DC Voltage - Input (Max) [Max] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Voltage - Isolation | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Adjustable Output IP20 | 26.9 mm | 3.94 in | 2.95 in | 1.06 in | 100.1 mm | 74.9 mm | 1 | Industrial ITE (Commercial) | 88 % | 1 A | 85 V | 24 W | AC or DC | 375 V | 24 V | 70 °C | -10 °C | 264 VAC | 85 VAC | 3000 V | CB cCSAus CE cULus cURus |
 Traco Power | Adjustable Output IP20 | 26.9 mm | 3.94 in | 2.95 in | 1.06 in | 100.1 mm | 74.9 mm | 1 | Industrial ITE (Commercial) | 86 % | 2 A | 18 V | 24 W | DC | 75 V | 12 V | 70 °C | -25 °C | 1.5 kV | CB cULus | ||
Traco Power | Adjustable Output IP20 | 26.9 mm | 3.94 in | 2.95 in | 1.06 in | 100.1 mm | 74.9 mm | 1 | Industrial ITE (Commercial) | 86 % | 1 A | 18 V | 24 W | DC | 75 V | 24 V | 70 °C | -25 °C | 1.5 kV | CB cULus |
