26M048 Series
Manufacturer: Portescap
Beta
⌘K

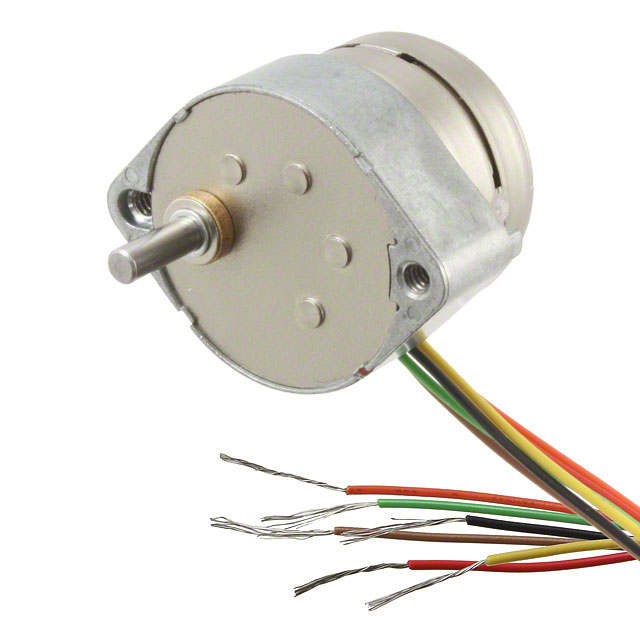

STEPPER MOTOR PM GEARED UNI 12V
| Part | Weight | Weight | Rotor Inertia | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Termination Style | Type | Steps per Revolution | Step Angle | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Features | Coil Resistance | Current Rating (Amps) | Voltage - Rated | Coil Type | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 57.15 g | 0.126 lb | 1.1 gcm˛ | 0.125 in | 3.18 mm | Wire Leads | Permanent Magnet Gear Motor | 1440 | 0.25 ° | 29.87 mm | 1.18 in | Round Shaft | 110 Ohms | 110 mA | 12 VDC | Unipolar | 0.432 in | 10.97 mm | 1.3 oz-in | 9.2 mNm | Round | 26.16 mm | 1.03 in | -20 ░C | 70 °C |
