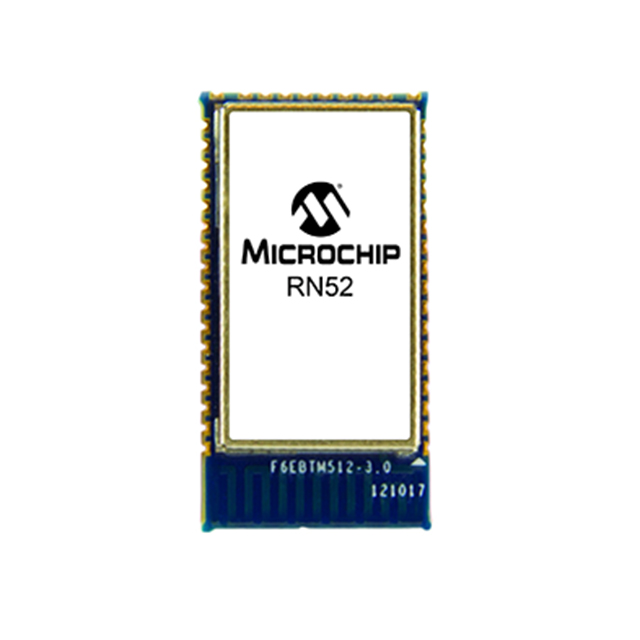

RN52 Series
Manufacturer: Microchip Technology
Beta
⌘K
RF TXRX MOD BT TH SMD
| Part | Firmware Version | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | RF Family/Standard | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Memory Type | Memory Size (Flash) | Power - Output | Current - Receiving | Sensitivity | Mounting Type | Modulation | Data Rate | Frequency | Current - Transmitting | Serial Interfaces | Protocol | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 1.0.0 | 3.6 V | 3 V | Bluetooth | Module | -40 °C | 85 °C | Flash | 16 MB | 4 dBm | 30 mA | -85 dBm | Surface Mount | DPSK DQPSK GFSK | 3 Mbps | 2.4 GHz | 30 mA | AIO I2S SPI UART USB | Bluetooth v3.0 Class 2 | Integrated Trace |
 Microchip Technology | 1.1.6 | 3.6 V | 3 V | Bluetooth | 50-SMD Module | -40 °C | 85 °C | Flash | 16 MB | 4 dBm | 30 mA | -85 dBm | Surface Mount | DPSK DQPSK GFSK | 3 Mbps | 2.4 GHz | 30 mA | AIO I2S SPI UART USB | Bluetooth v3.0 Class 2 | Integrated Trace |
