2N7002 Series

Catalog

MOSFET N-CH 60V 0.115A SOT323

Part	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Mounting Type	Technology	FET Type	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Package / Case	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature

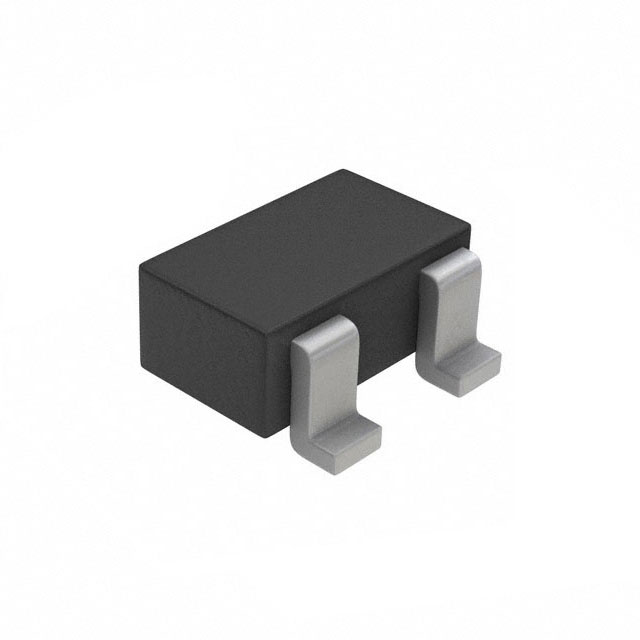

Comchip Technology 2N7002W-G	60 V	5 V 10 V	SOT-323	115 mA	200 mW	5 Ohm	Surface Mount	MOSFET (Metal Oxide)	N-Channel	20 V	50 pF	SC-70 SOT-323	2.5 V	150 °C	-55 °C
Comchip Technology 2N7002W-HF	60 V	5 V 10 V	SOT-323	115 mA	200 mW	5 Ohm	Surface Mount	MOSFET (Metal Oxide)	N-Channel	20 V	50 pF	SC-70 SOT-323	2.5 V			150 °C
