225-PRS Series

Catalog

CONN SOCKET PGA ZIF GOLD

Part	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Finish - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish - Post	Contact Material - Mating	Contact Material - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type

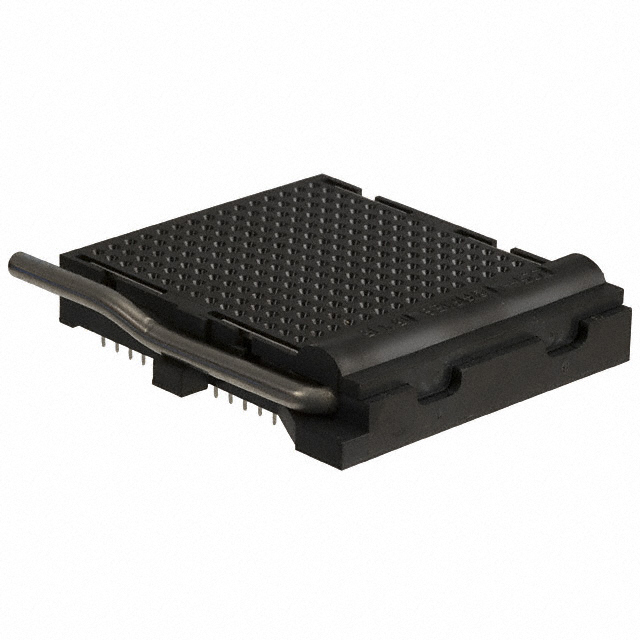

Aries Electronics 225-PRS15001-12	UL94 V-0	1 A	0.125 in	3.18 mm	Gold	0.1 in	2.54 mm	15	15	225	200 µin	5.08 µm	Closed Frame	Tin	Beryllium Copper	Beryllium Copper	Solder	0.76 Ám	30 Áin	0.1 "	2.54 mm	-65 ░C	125 °C	Through Hole	PGA ZIF (ZIP)
Aries Electronics 225-PRS18003-12	UL94 V-0	1 A	0.125 in	3.18 mm	Gold	0.1 in	2.54 mm				200 µin	5.08 µm	Closed Frame	Tin	Beryllium Copper	Beryllium Copper	Solder	0.76 Ám	30 Áin	0.1 "	2.54 mm	-65 ░C	125 °C	Through Hole	PGA ZIF (ZIP)
Aries Electronics 225-PRS17007-12	UL94 V-0	1 A	0.125 in	3.18 mm	Gold	0.1 in	2.54 mm				200 µin	5.08 µm	Closed Frame	Tin	Beryllium Copper	Beryllium Copper	Solder	0.76 Ám	30 Áin	0.1 "	2.54 mm	-65 ░C	125 °C	Through Hole	PGA ZIF (ZIP)
