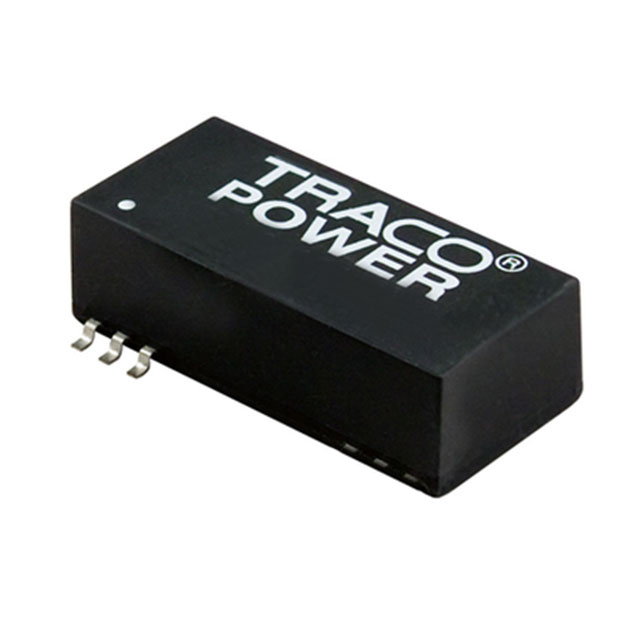

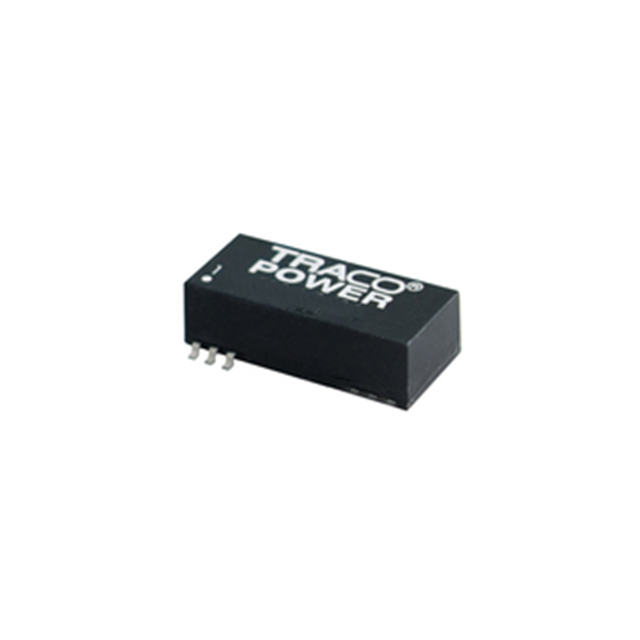

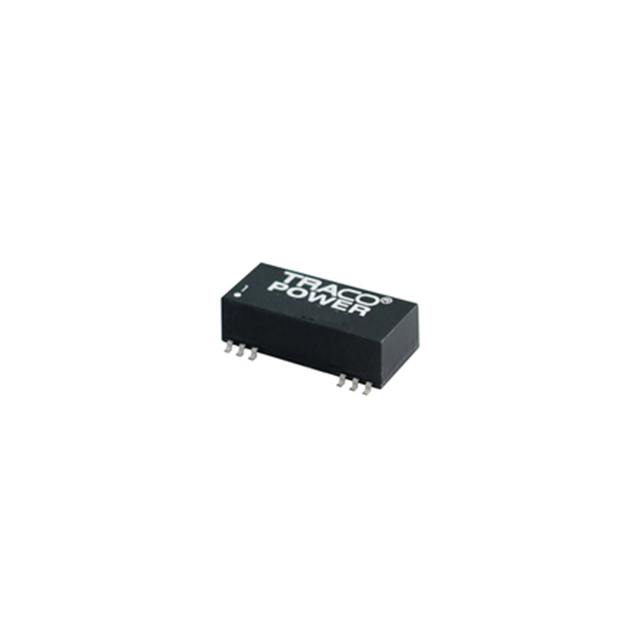

TES 3 Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 2.3W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT PLASTIC CASE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Number of Outputs	Efficiency	Mounting Type	Type	Voltage - Output 1	Features	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Isolation	Applications	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TES 3-1210	-40 °C	85 °C	2.3 W	1	75 %	Surface Mount	Isolated Module	3.3 V	SCP	24-SMD Module 12 Leads	9 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm	700 mA	18 V	1.5 kV	ITE (Commercial)
Traco Power TES 3-2410WI	-40 C	71 °C		1	75 %	Surface Mount	Isolated Module	3.3 V	Remote On/Off SCP	24-SMD Module 12 Leads	9 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm	750 mA	36 V	1.5 kV	ITE (Commercial)
Traco Power TES 3-4811	-40 °C	85 °C	3 W	1	80 %	Surface Mount	Isolated Module	5 V	SCP	24-SMD Module 12 Leads	36 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm	600 mA	75 V	1.5 kV	ITE (Commercial)
Traco Power TES 3-4823	-40 °C	85 °C	3 W	2		Surface Mount	Isolated Module	15 V	SCP	24-SMD Module 12 Leads	36 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm		75 V	1.5 kV	ITE (Commercial)	100 mA	100 mA	-15 V
Traco Power TES 3-2421WI	-40 C	71 °C	3 W	2	78 %	Surface Mount	Isolated Module	5 V	Remote On/Off SCP	24-SMD Module 12 Leads	9 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm	0.3 A	36 V	1.5 kV	ITE (Commercial)			-5 V
Traco Power TES 3-4811WI	-40 C	71 °C	3 W	1	80 %	Surface Mount	Isolated Module	5 V	Remote On/Off SCP	24-SMD Module 12 Leads	18 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm	600 mA	75 V	1.5 kV	ITE (Commercial)
Traco Power TES 3-4812	-40 °C	85 °C	3 W	1	83 %	Surface Mount	Isolated Module	12 V	SCP	24-SMD Module 12 Leads	36 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm	250 mA	75 V	1.5 kV	ITE (Commercial)
Traco Power TES 3-1223	-40 °C	85 °C	3 W	2	81 %	Surface Mount	Isolated Module	15 V	SCP	24-SMD Module 12 Leads	9 V	0.58 in	10.2 mm	1.27 in	14.8 mm	0.4 "	32.2 mm		18 V	1.5 kV	ITE (Commercial)	100 mA	100 mA	-15 V
