C1176 Series

Catalog

CABLE COAXIAL RG-213 13AWG 500'

Part	Shield Material	Length [x]	Length [x]	Length	Length	Dielectric Material	Cable Type	Cable Group	Jacket Color	Impedance	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Strand	Shield Coverage	VoP, Velocity of Propagation	Shield Type	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Wire Gauge

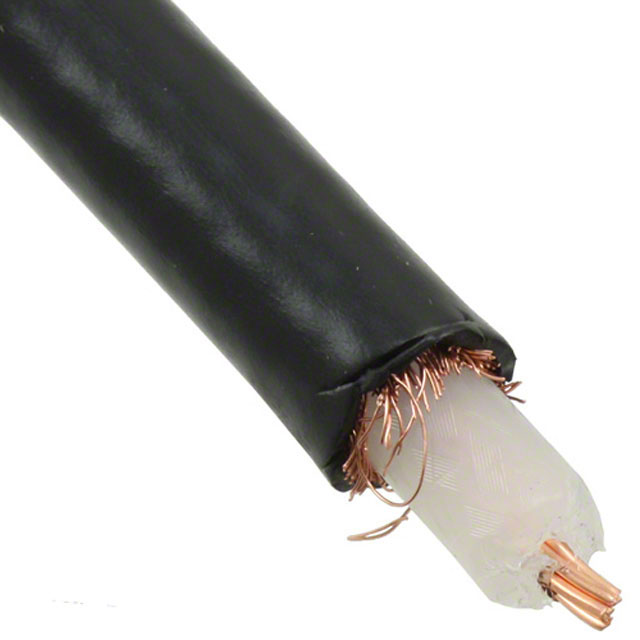

Prysmian Group C1176A.38.01	Copper Bare	15.24 m 152.4 m	50 ft 500 ft	100 '	30.48 m	Solid Polyethylene (PE)	Coaxial	RG-213	Black	50 Ohms	Copper Bare	0.285 in	7.24 mm	7 Strands 21 AWG	95 %	66	Braid	RF Signal	10.29 mm	0.405 "	2.88 mm² 13 AWG	Poly-Vinyl Chloride (PVC)
Prysmian Group C1176.44.01	Copper Bare	762 m	2500 '			Solid Polyethylene (PE)	Coaxial	RG-213	Black	50 Ohms	Copper Bare	0.285 in	7.24 mm	7 Strands 21 AWG	95 %	66	Braid	RF Signal	10.29 mm	0.405 "	2.88 mm² 13 AWG	Poly-Vinyl Chloride (PVC)

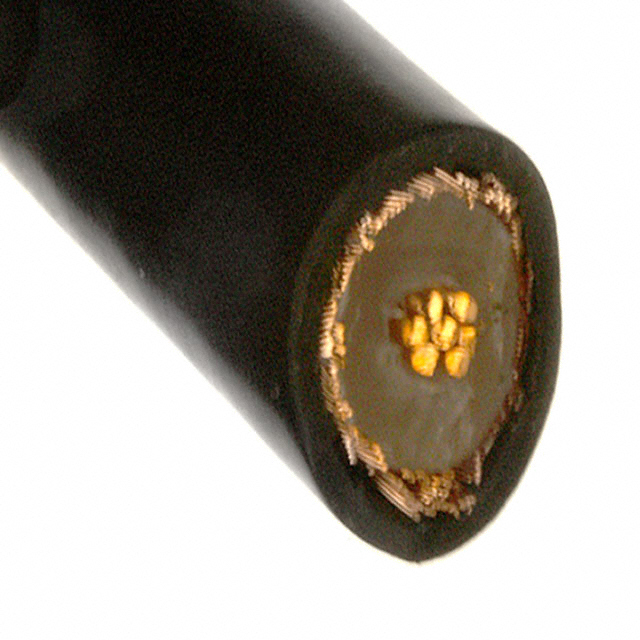

Prysmian Group C1176A.41.01		15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	100 '	30.48 m		Coaxial	RG-213	Black	50 Ohms				7 Strands 21 AWG			Braid	RF Signal	10.29 mm	0.405 "	2.88 mm² 13 AWG	Poly-Vinyl Chloride (PVC)
Prysmian Group C1176A.41.01	Copper Bare	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft			Solid Polyethylene (PE)	Coaxial	RG-213	Black	50 Ohms	Copper Bare	0.285 in	7.24 mm	7 Strands 21 AWG	95 %	66	Braid	RF Signal	10.29 mm	0.405 "	2.88 mm² 13 AWG	Poly-Vinyl Chloride (PVC)	2.88 mm˛
Prysmian Group C1176A.38.01		152.4 m	500 ft				Coaxial	RG-213	Black	50 Ohms				7 Strands 21 AWG			Braid	RF Signal	10.29 mm	0.405 "	2.88 mm² 13 AWG	Poly-Vinyl Chloride (PVC)
