BPAL Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR) [Max]	Inductance	Current Rating (Amps)	Current - Saturation (Isat)	Mounting Type	Shielding	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Material - Core	Package / Case	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

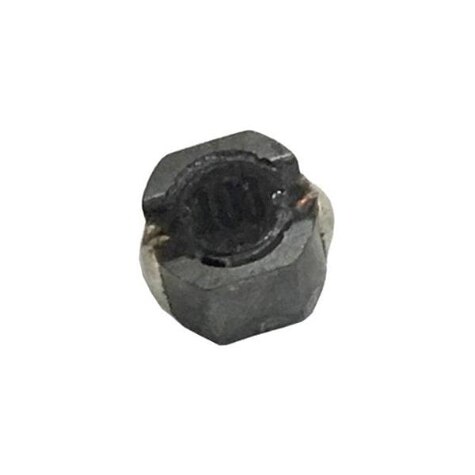

Pulse Electronics BPAL00060645222T0E	125 °C	-40 C	0.189 "	4.8 mm	16 Ohm	2.2 mH	100 mA	80 mA	Surface Mount	Shielded	100 kHz	6.7 mm	0.236 "	6 mm	0.264 in	30 %	Ferrite	Nonstandard
Pulse Electronics BPAL00080845101T00	125 °C	-40 C				100 µH	1.1 A	1.2 A	Surface Mount	Shielded	100 kHz	9.5 mm	0.295 in	7.5 mm	0.374 in	30 %	Ferrite	Nonstandard	330 mOhm	4.5 mm	0.177 in
Pulse Electronics BPAL000808453R3T00	125 °C	-40 C			11.4 mOhm	3.3 µH	6 A	6 A	Surface Mount	Shielded	100 kHz	9.5 mm	0.295 in	7.5 mm	0.374 in	30 %	Ferrite	Nonstandard		4.5 mm	0.177 in
Pulse Electronics BPAL000606452R2T00	125 °C	-40 C	0.189 "	4.8 mm	15 mOhm	2.2 µH	4.1 A	4.2 A	Surface Mount	Shielded	100 kHz	7.2 mm	0.236 "	6 mm	0.283 "	30 %	Ferrite	Nonstandard
Pulse Electronics BPAL00080845331T00	125 °C	-40 C			1.13 Ohm	330 µH	0.55 A	700 mA	Surface Mount	Shielded	100 kHz	9.5 mm	0.295 in	7.5 mm	0.374 in	30 %	Ferrite	Nonstandard		4.5 mm	0.177 in
Pulse Electronics BPAL000606303R3M00	125 °C	-40 C			26 mOhm	3.3 µH	3.54 A	1.89 A	Surface Mount	Shielded	100 kHz	6.4 mm	0.244 in	6.2 mm	0.252 in	20 %	Ferrite	Nonstandard		3 mm	0.118 "
Pulse Electronics BPAL00060630120M00	125 °C	-40 C				12 µH	2.12 A	1.04 A	Surface Mount	Shielded	100 kHz	6.4 mm	0.244 in	6.2 mm	0.252 in	20 %	Ferrite	Nonstandard	63 mOhm	3 mm	0.118 "
Pulse Electronics BPAL00060645330T00	125 °C	-40 C	0.189 "	4.8 mm		33 µH	1.6 A	1.1 A	Surface Mount	Shielded	100 kHz	7.2 mm	0.236 "	6 mm	0.283 "	30 %	Ferrite	Nonstandard	100 mOhm
Pulse Electronics BPAL00060630220M00	125 °C	-40 C				22 µH	1.58 A	770 mA	Surface Mount	Shielded	100 kHz	6.4 mm	0.244 in	6.2 mm	0.252 in	20 %	Ferrite	Nonstandard	115 mOhm	3 mm	0.118 "
Pulse Electronics BPAL00060630390M00	125 °C	-40 C			180 mOhm	39 µH	1.16 A	580 mA	Surface Mount	Shielded	100 kHz	6.4 mm	0.244 in	6.2 mm	0.252 in	20 %	Ferrite	Nonstandard		3 mm	0.118 "
