ADP7158 Series

2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator

Catalog

2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator

Part	Supplied Contents	Channels per IC	Voltage - Output	Board Type	Utilized IC / Part	Regulator Type	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input (Max) [Max]	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Package / Case	Package / Case	Package / Case	Output Type	Mounting Type	Output Configuration	Supplier Device Package	Current - Supply (Max) [Max]	Number of Regulators	Protection Features	Voltage - Output (Min/Fixed)	PSRR [Max]	PSRR [Min]	Voltage - Output (Min/Fixed) [Min]

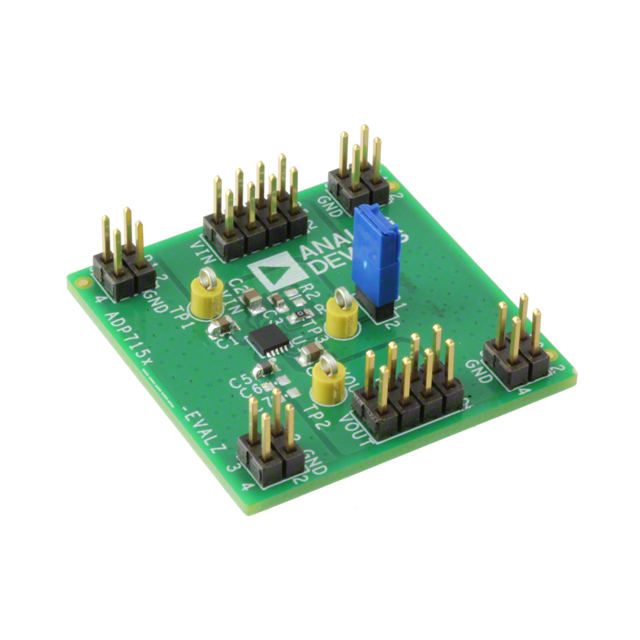

Analog Devices ADP7158CP-3.3EVALZ	Board(s)	1 - Single	3.3 V	Fully Populated	ADP7158	Positive Fixed	2 A	2.3 V	5.5 V
Analog Devices ADP7158ARDZ-3.0-R7							2 A			5.5 V	Enable	125 °C	-40 °C	8 mA	0.154 in	8-SOIC	3.9 mm	1.81 mOhm	Surface Mount	Positive	8-SOIC-EP	14 mA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)
Analog Devices ADP7158ACPZ-1.8-R7							2 A			5.5 V	Enable	125 °C	-40 °C	8 mA		10-VFDFN Exposed Pad CSP		1.81 mOhm	Surface Mount	Positive	10-LFCSP-WD (3x3)	14 mA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.8 V	70 db	50 dB
Analog Devices ADP7158ARDZ-2.0-R7							2 A			5.5 V	Enable	125 °C	-40 °C	8 mA	0.154 in	8-SOIC	3.9 mm	1.81 mOhm	Surface Mount	Positive	8-SOIC-EP	14 mA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)				2 V
Analog Devices ADP7158ARDZ-2.5-R7							2 A			5.5 V	Enable	125 °C	-40 °C	8 mA	0.154 in	8-SOIC	3.9 mm	1.81 mOhm	Surface Mount	Positive	8-SOIC-EP	14 mA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	2.5 V

Catalog

2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator

Key Features

• Input voltage range: 2.3 V to 5.5 V

• 16 standard voltages between 1.2 V and 3.3 V available

• Maximum load current: 2 A

• Low noise0.9 µV rms total integrated noise from 100 Hz to 100 kHz1.6 µV rms total integrated noise from 10 Hz to 100 kHz

• 0.9 µV rms total integrated noise from 100 Hz to 100 kHz

• 1.6 µV rms total integrated noise from 10 Hz to 100 kHz

• Noise spectral density: 1.7 nV/√Hzfrom 10 kHz to 1 MHz

• Power supply rejection ratio (PSRR)70 dB from 1 kHz to 100 kHz; 50 dB at 1 MHz, VOUT= 3.3 V, VIN= 4.0 V

• 70 dB from 1 kHz to 100 kHz; 50 dB at 1 MHz, VOUT= 3.3 V, VIN= 4.0 V

• Dropout voltage: 200 mV typical at IOUT= 2 A, VOUT= 3.3 V

• Initial accuracy: ±0.6% at ILOAD= 10 mA

• Accuracy over line, load, and temperature: ±1.5%

• Quiescent current: IGND= 4.0 mA at no load, 9.0 mA at 2 A

• Low shutdown current: 0.2 μA

• Stable with a 10 µF ceramic output capacitor

• 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages

• Precision enable

• Supported by ADIsimPower tool

Description

The ADP7158 is a linear regulator that operates from 2.3 V to 5.5 V and provides up to 2 A of output current. Using an advanced proprietary architecture, it provides high power supply rejection and ultralow noise, achieving excellent line and load transient response with only a 10 µF ceramic output capacitor.There are 16 standard output voltages for the ADP7158. The following voltages are available from stock: 1.2 V, 1.8 V, 2.0 V, 2.5 V, 2.8 V, 3.0 V, and 3.3 V. Additional voltages available by special order are 1.3 V, 1.5 V, 1.6 V, 2.2 V, 2.6 V, 2.7 V, 2.9 V, 3.1 V, and 3.2 V.The ADP7158 regulator typical output noise is 0.9 μV rms from 100 Hz to 100 kHz and 1.7 nV/√Hzfor noise spectral density from 10 kHz to 1 MHz. The ADP7158 is available in a 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 2 A of output current in a small, low profile footprint.ApplicationsRegulation to noise sensitive applications: phase-locked loops (PLLs), voltage controlled oscillators (VCOs), and PLLs with integrated VCOsCommunications and infrastructureBackhaul and microwave links
