RP1235 Series

Catalog

BOX ABS GRAY/CLR 7.67"L X 4.94"W

Part	Area (L x W)	Area (L x W)	Container Type	Thickness	Thickness	Material Flammability Rating	Material	Color	Design	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]

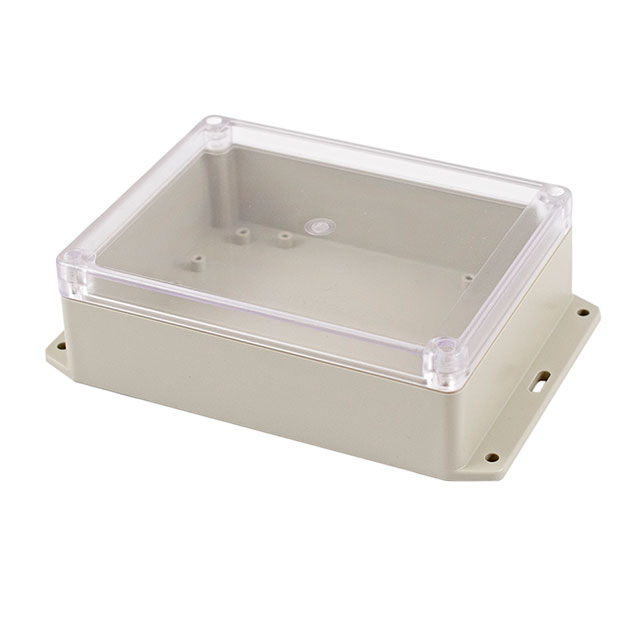

Hammond Manufacturing RP1235BFC	37.8 in²	244 cm²	Box	0.08 in	2.03 mm	UL94 HB	ABS	Clear Cover/Door Gray	Cover Included	4.94 "	125.48 mm	7.67 in	194.82 mm	2.17 "	55.12 mm

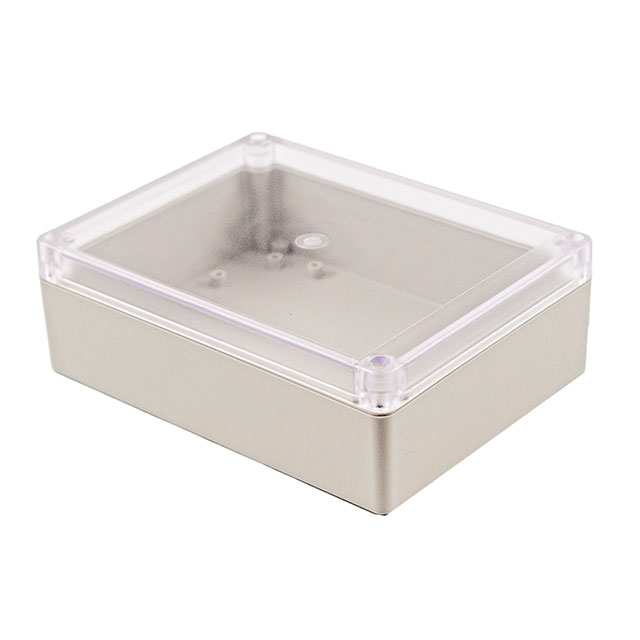

Hammond Manufacturing RP1235C	32.2 in˛	208 cm˛	Box	0.08 in	2.03 mm	UL94 HB	ABS	Clear Cover/Door Gray	Cover Included	4.94 "	125.48 mm	6.52 in	165.61 mm	2.17 "	55.12 mm

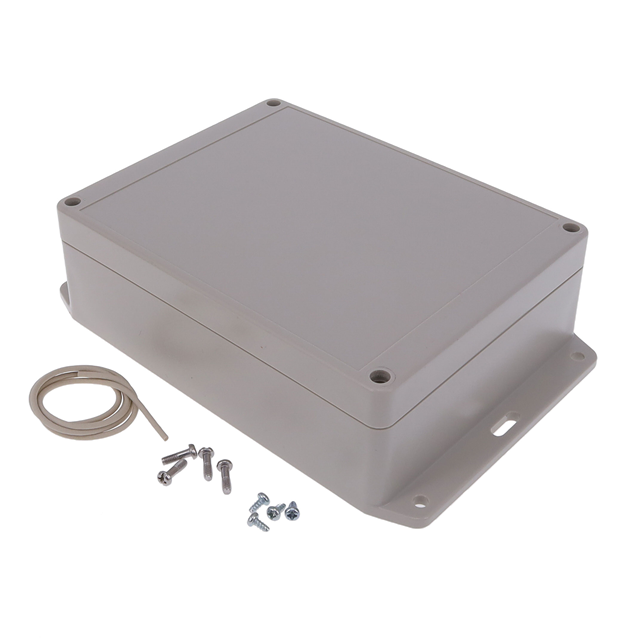

Hammond Manufacturing RP1235BF	37.8 in²	244 cm²	Box	0.08 in	2.03 mm	UL94 HB	ABS	Gray	Cover Included	4.94 "	125.48 mm	7.67 in	194.82 mm	2.17 "	55.12 mm
