VCO SMT w/Buffer Amplifier, 6.1 - 6.72 GHz
Key Features
• Pout: +4.5 dBm
• Phase Noise: -101 dBc/Hz @100 KHz
• No External Resonator Needed
• Single Supply: +3V @ 31 mA
• QFN Leadless SMT Package, 16 mm2
Description
AI

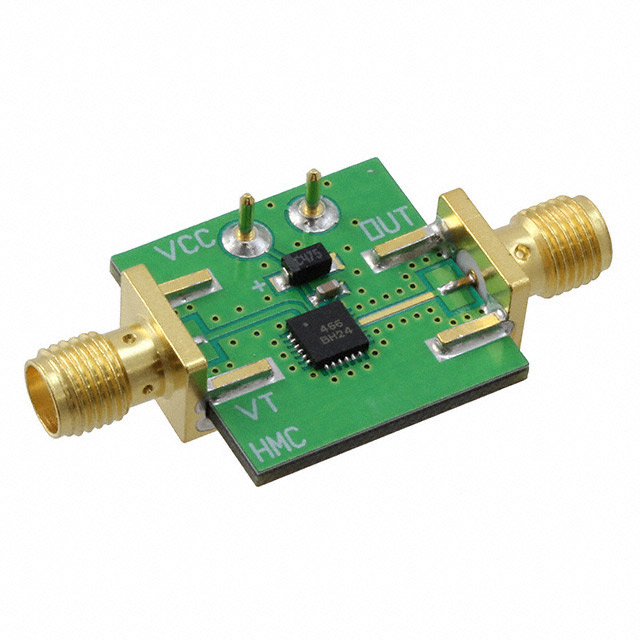

The HMC466LP4(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO with an integrated resonator, negative resistance device, varactor diode, and buffer amplifier. Covering 6.1 to 6.72 GHz, the VCO’s phase noise performance is excellent over temperature, shock, vibration and process due to the oscillator’s monolithic structure. Power output is 4.5 dBm typical from a single supply of 3V @ 31mA. The voltage controlled oscillator is packaged in a low cost leadless QFN 4x4 mm surface mount package.APPLICATIONSVSAT & Microwave RadioCATV & Broadcast RelaysTest Equipment & Industrial ControlsMilitary
