5915PC Series

Catalog

FAN AXIAL 172X38MM 115VAC TERM

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Static Pressure	Static Pressure	Voltage - Rated	Power (Watts)	Termination	Bearing Type	Approval Agency	Width [y]	Fan Type	RPM	Noise	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Ingress Protection

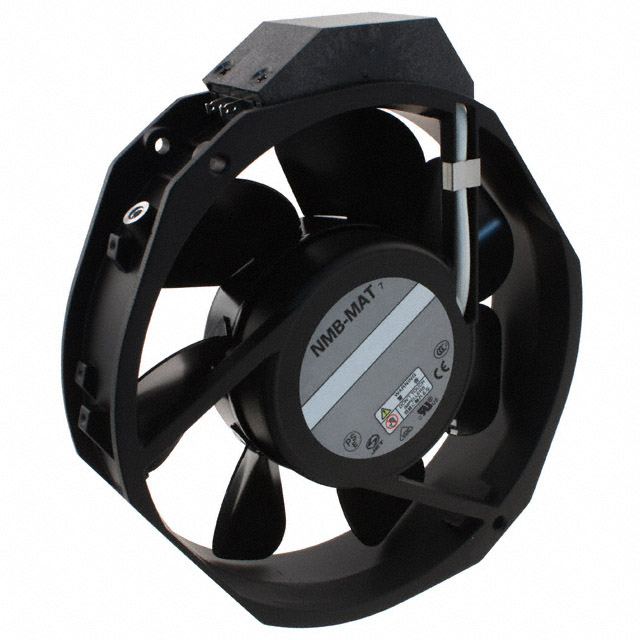

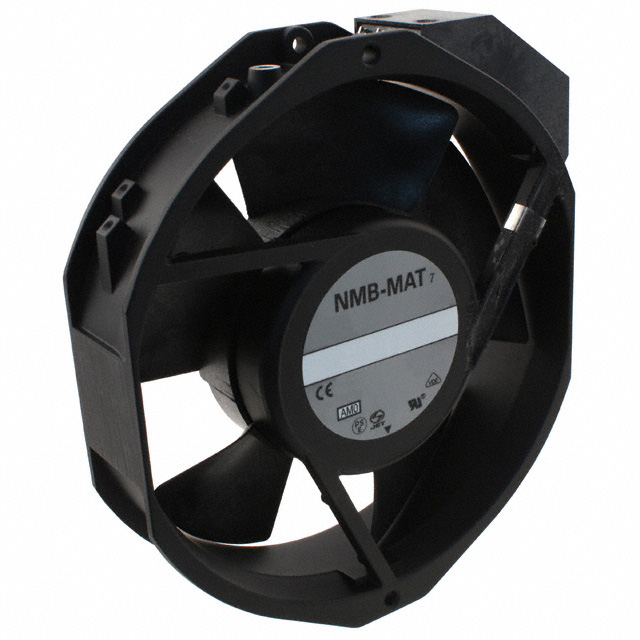

NMB TECHNOLOGIES 5915PC-12T-B30-S00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	400 mA	70 °C	-10 °C	907.2 g	2 lbs	163.2 Pa	0.655 in H2O	115 VAC	38 Watts	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3150 RPM	53 dB	Rectangular/Rounded	150 mm	172 mm	5.24 mł/min	187.1 CFM

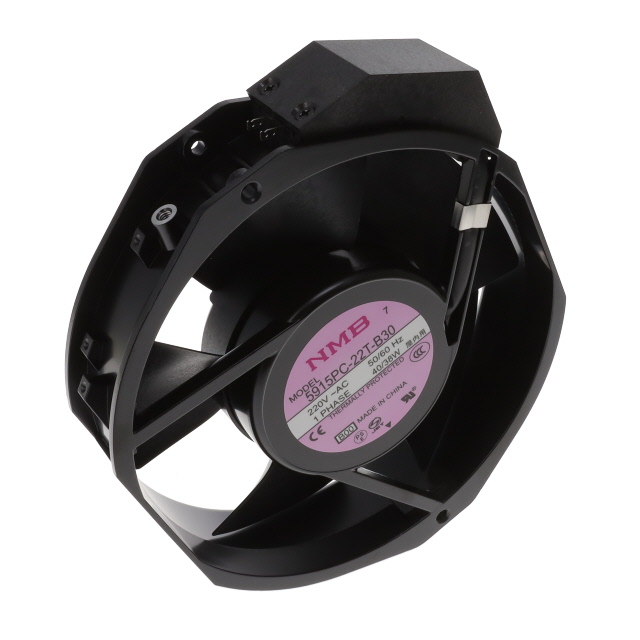

NMB TECHNOLOGIES 5915PC-22T-B30-B00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	0.18 A	70 °C	-10 °C	816.5 g	1.8 lbs	215.6 Pa	0.865 in H2O	220 VAC	38 Watts	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3200 RPM	56 dB	Rectangular/Rounded	150 mm	172 mm	5.94 m³/min	212 CFM
NMB TECHNOLOGIES 5915PC-12T-B10-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	190 mA	70 °C	-10 °C	816.5 g	1.8 lbs	60.7 Pa	0.243 in H2O	115 VAC	18 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	1650 RPM	38 dB(A)	Rectangular/Rounded	150 mm	172 mm	2.86 m³/min	102.3 CFM
NMB TECHNOLOGIES 5915PC-20T-B30-BM0	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	0.21 A	70 °C	-10 °C	861.8 g	1.9 lbs	215 Pa	0.863 in H2O	200 VAC	33 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3200 RPM	56 dB	Rectangular/Rounded	150 mm	172 mm	5.93 m³/min	211.8 CFM

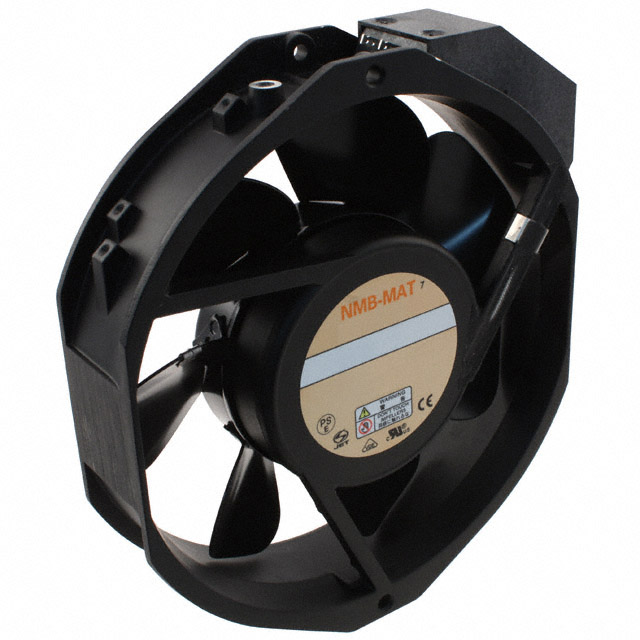

NMB TECHNOLOGIES 5915PC-23T-B30-SM0	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	0.2 A	70 °C	-10 °C	952.5 g	2.1 lb	163.2 Pa	0.655 in H2O	230 VAC	40 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3150 RPM	53 dB	Rectangular/Rounded	150 mm	172 mm	5.24 mł/min	187.1 CFM	IP54 - Dust Protected Water Resistant
NMB TECHNOLOGIES 5915PC-22T-B30-BM0	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	0.18 A	70 °C	-10 °C	861.8 g	1.9 lbs	215 Pa	0.863 in H2O	220 VAC	38 Watts	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3200 RPM	56 dB	Rectangular/Rounded	150 mm	172 mm	5.93 m³/min	211.8 CFM
NMB TECHNOLOGIES 5915PC-22T-B30-S00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	0.23 A	70 °C	-10 °C	907.2 g	2 lbs	163.2 Pa	0.655 in H2O	220 VAC	40 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3150 RPM	53 dB	Rectangular/Rounded	150 mm	172 mm	5.24 mł/min	187.1 CFM
NMB TECHNOLOGIES 5915PC-10T-B30-SM0	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	0.44 A	70 °C	-10 °C	861.8 g	1.9 lbs	215 Pa	0.863 in H2O	100 VAC	33 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3200 RPM	56 dB	Rectangular/Rounded	150 mm	172 mm	5.93 m³/min	211.8 CFM

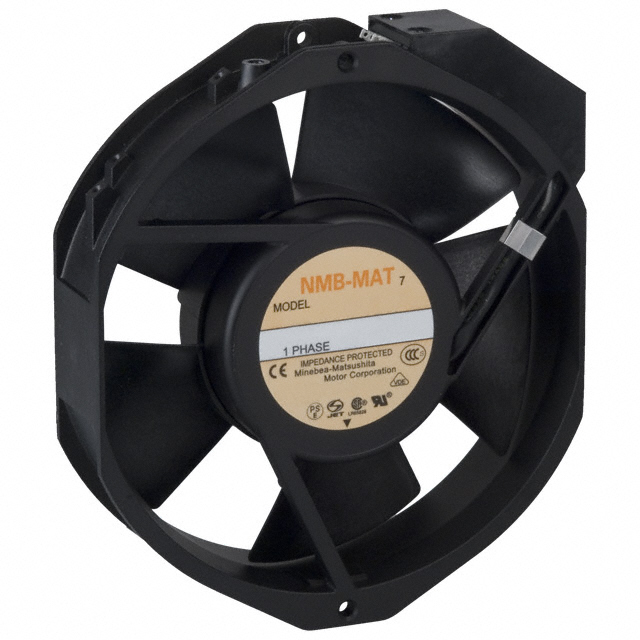

NMB TECHNOLOGIES 5915PC-23T-B30-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	190 mA	70 °C	-10 °C	816.5 g	1.8 lbs	215.6 Pa	0.865 in H2O	230 VAC	35 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	3200 RPM	56 dB	Rectangular/Rounded	150 mm	172 mm	5.94 m³/min	212 CFM
NMB TECHNOLOGIES 5915PC-23T-B10-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	110 mA	70 °C	-10 °C	816.5 g	1.8 lbs	60.7 Pa	0.243 in H2O	230 VAC	18 W	2	Ball	CE CSA UL VDE	38 mm	Tubeaxial	1650 RPM	38 dB(A)	Rectangular/Rounded	150 mm	172 mm	2.86 m³/min	102.3 CFM
