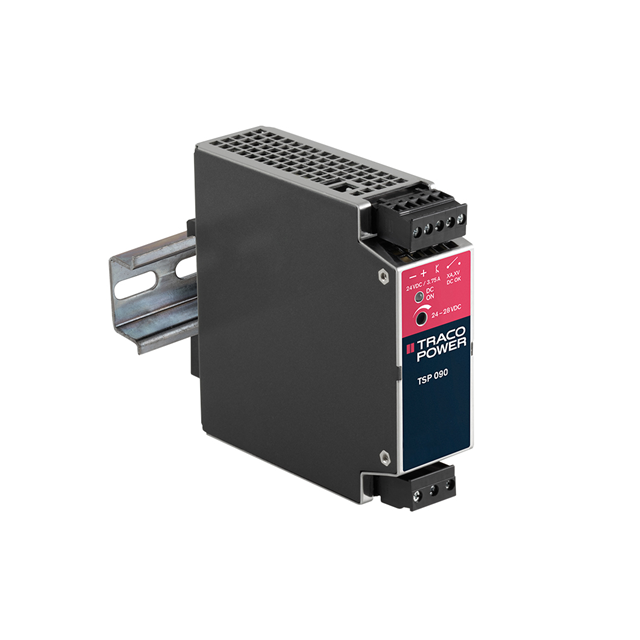

TSP 090 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 3.75A 90W
| Part | Power (Watts) | Current - Output (Max) [Max] | Voltage - Output 1 | Approval Agency | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Number of Outputs | Efficiency | Input Type | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 90 W | 3.75 A | 24 V | CB CE cURus SIQ | 264 VAC | 85 VAC | 1 | 87 % | AC | Hazardous Locations Industrial ITE (Commercial) | 35.1 mm | 110 mm | 1.38 in | 110 mm | 4.33 in | 4.33 " | Adjustable Output IP20 Remote On/Off Universal Input | 70 °C | -25 °C |
 Traco Power | 90 W | 3.75 A | 24 V | CB CE cURus SIQ | 264 VAC | 85 VAC | 1 | 87 % | AC | Industrial ITE (Commercial) | 35.1 mm | 110 mm | 1.38 in | 110 mm | 4.33 in | 4.33 " | Adjustable Output IP20 Remote On/Off Universal Input | 70 °C | -25 °C |
Traco Power | 90 W | 3.75 A | 24 V | CB CE cURus SIQ | 264 VAC | 85 VAC | 1 | 87 % | AC | Industrial ITE (Commercial) | 35.1 mm | 110 mm | 1.38 in | 110 mm | 4.33 in | 4.33 " | Adjustable Output IP20 Remote On/Off Universal Input | 70 °C | -25 °C |
