AD7292 Series
Manufacturer: Analog Devices
Beta
⌘K
IC ADC 10BIT SAR 36LFCSP
| Part | Input Type | Architecture | Ratio - S/H:ADC | Package / Case | Voltage - Supply, Analog | Reference Type | Number of A/D Converters | Operating Temperature [Max] | Operating Temperature [Min] | Data Interface | Configuration | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Features | Mounting Type | Number of Inputs | Supplier Device Package | Sampling Rate (Per Second) | Number of Bits [custom] | Utilized IC / Part | Supplied Contents | Input Range [Max] | Input Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Differential Single Ended | SAR | 1:1 | 36-WFQFN Exposed Pad CSP | 5 V | External Internal | 1 | 125 °C | -40 °C | SPI | MUX-S/H-ADC | 1.8 V | 5.25 V | Temperature Sensor | Surface Mount | 1 8 | 36-LFCSP-WQ (6x6) | 625 k | 10 | ||||

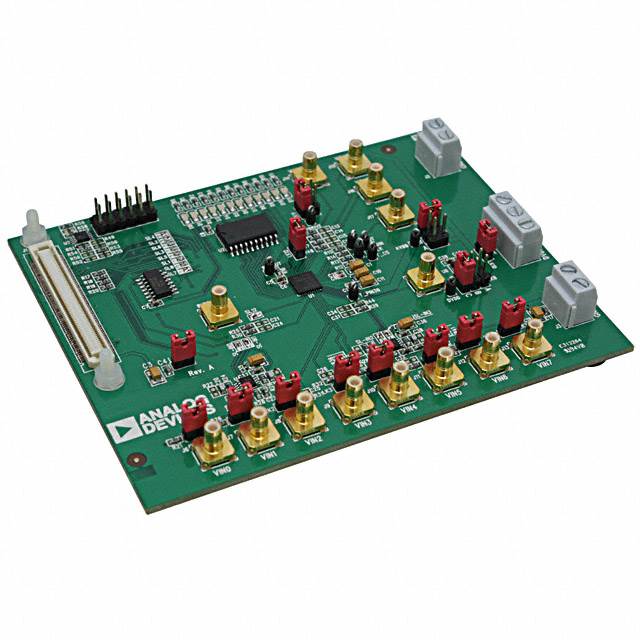

 Analog Devices | 1 | SPI | 625 k | 10 | AD7292 | Board(s) Cable(s) | VREF | 0 | |||||||||||||||
Analog Devices | Differential Single Ended | SAR | 1:1 | 36-WFQFN Exposed Pad CSP | 5 V | External Internal | 1 | 125 °C | -40 °C | SPI | MUX-S/H-ADC | 1.8 V | 5.25 V | Temperature Sensor | Surface Mount | 1 8 | 36-LFCSP-WQ (6x6) | 625 k | 10 |
