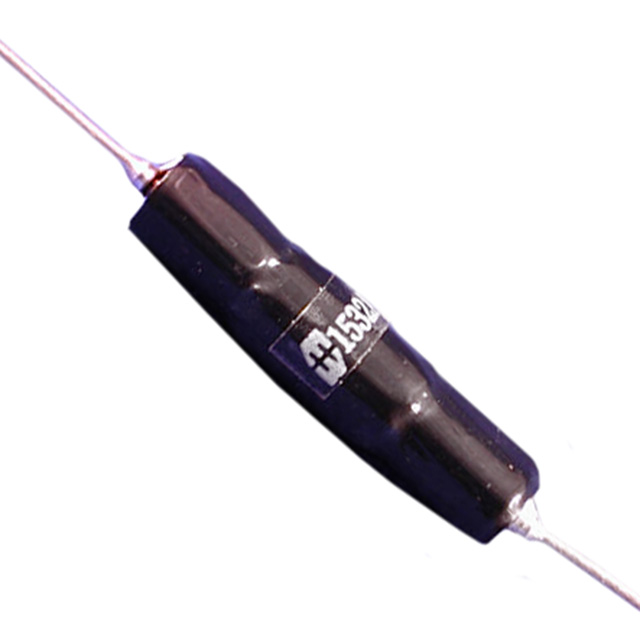

1532 Series

Catalog

FIXED IND 15UH 1A 170 MOHM TH

Part	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Tolerance	Current Rating (Amps)	Shielding	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Type	Inductance Frequency - Test	Mounting Type	Q @ Freq	Package / Case	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Hammond Manufacturing 1532B	170 mOhm	33 MHz	10 %	1 A	Unshielded	15 µH	0.29 in	7.37 mm	0.875 "	22.22 mm	Wirewound	2.5 MHz	Through Hole	2.5 MHz 62	Axial
Hammond Manufacturing 1532C	340 mOhm	25 MHz	10 %	800 mA	Unshielded	24 µH	0.29 in	7.37 mm	0.875 "	22.22 mm	Wirewound	2.5 MHz	Through Hole	2.5 MHz 65	Axial
Hammond Manufacturing 1532H	3 Ohm	12 MHz	10 %	400 mA	Unshielded	100 µH	0.29 in	7.37 mm	0.875 "	22.22 mm	Wirewound	790 kHz	Through Hole		Axial	790 kHz	107
Hammond Manufacturing 1532A		40 MHz	10 %	1.5 A	Unshielded	10 µH	0.29 in	7.37 mm	0.875 "	22.22 mm	Wirewound	2.5 MHz	Through Hole	2.5 MHz 69	Axial			110 mOhm
Hammond Manufacturing 1532E	1 Ohm	17 MHz	10 %	0.5 A	Unshielded	55 µH	0.29 in	7.37 mm	0.875 "	22.22 mm	Wirewound	2.5 MHz	Through Hole	72	Axial
Hammond Manufacturing 1532D	650 mOhm	200 kHz	10 %	600 mA	Unshielded	39 µH	0.29 in	7.37 mm	0.875 "	22.22 mm	Wirewound	2.5 MHz	Through Hole	2.5 MHz 70	Axial
