JUG-536/U Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

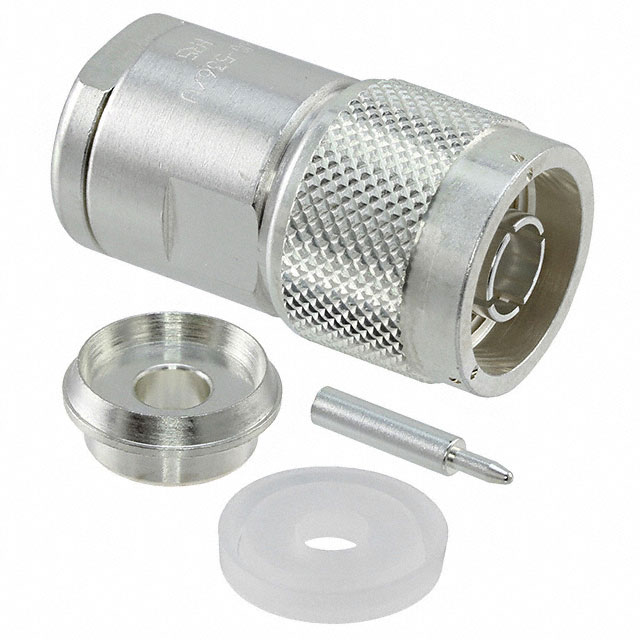

CONN N PLUG STR 50OHM SOLDER
| Part | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Mating Cycles | Center Contact Material | Connector Type | Number of Ports | Contact Termination | Mounting Type | Frequency - Max [Max] | Connector Style | Cable Group | Fastening Type | Shield Termination | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 60 °C | Nickel | Brass | 500 | Beryllium Copper | Plug Male Pin | 1 | Solder | Free Hanging (In-Line) | 10 GHz | N Type | RG-58 | Threaded | Clamp | 50 Ohms | Silver |
