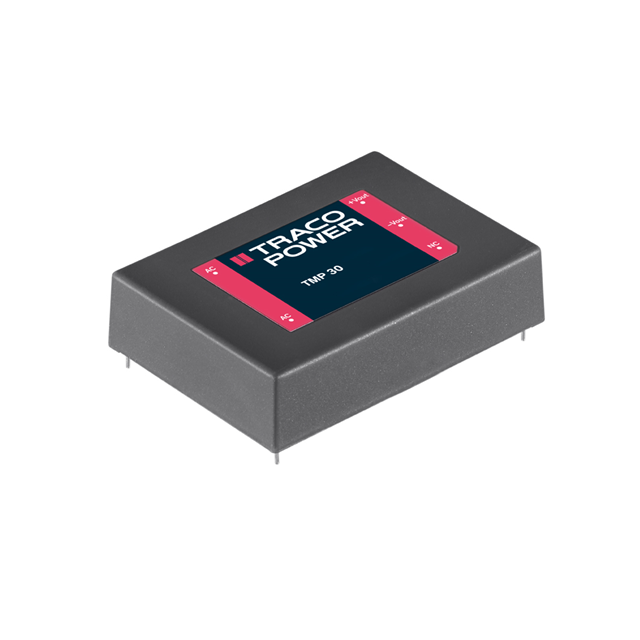

TMP 30 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY DUAL-OUT -15V/15V 1A/1A 30W 7-PIN
| Part | Load Regulation | Line Regulation | Number of Outputs | Current - Output (Max) | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Applications | Mounting Type | Package / Case | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Voltage - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | ±1% | 1 % 3 % | 2 | 1 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 80 % | ITE (Commercial) | Through Hole | 7-DIP Module 5 Leads | 30 Watts | CB CE cULus cURus | 21.7 mm | 63.5 mm | 0.85 " | 88.9 mm | 3.5 " | 2.5 " | Enclosed | 70 °C | -25 °C | 15 V | OTP SCP Universal Input | |||||
Traco Power | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 80 % | ITE (Commercial) | Through Hole | 7-DIP Module 5 Leads | 30 Watts | CB CE cULus cURus | 21.7 mm | 63.5 mm | 0.85 " | 88.9 mm | 3.5 " | 2.5 " | Enclosed | 70 °C | -25 °C | 12 V | OTP SCP Universal Input | 2.5 A | |||||||
 Traco Power | 2 | 1.3 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 80 % | ITE (Commercial) | Through Hole | 7-DIP Module | 31 W | CB CE cULus cURus | 21.7 mm | 63.5 mm | 0.85 " | 88.9 mm | 3.5 " | 2.5 " | Enclosed | 70 °C | -25 °C | 12 V | OTP SCP Universal Input | |||||||
Traco Power | ±1% | 1 % 3 % | 3 | 3 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 76 % | ITE (Commercial) | Through Hole | 7-DIP Module | 29 W | CB CE cULus cURus | 21.7 mm | 63.5 mm | 0.85 " | 88.9 mm | 3.5 " | 2.5 " | Enclosed | 70 °C | -25 °C | 5 V | OTP SCP Universal Input | 12 V | 600 mA | 600 mA | -12 V |
