BD9611MUV Series

60V Synchronous Step-down Switching Regulator (Controller Type)

Catalog

60V Synchronous Step-down Switching Regulator (Controller Type)

Part	Board Type	Main Purpose	Voltage - Output	Regulator Topology	Outputs and Type	Outputs and Type	Current - Output	Supplied Contents	Frequency - Switching	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Clock Sync	Supplier Device Package	Number of Outputs	Topology	Output Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Phases	Control Features	Synchronous Rectifier	Function	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Output Configuration

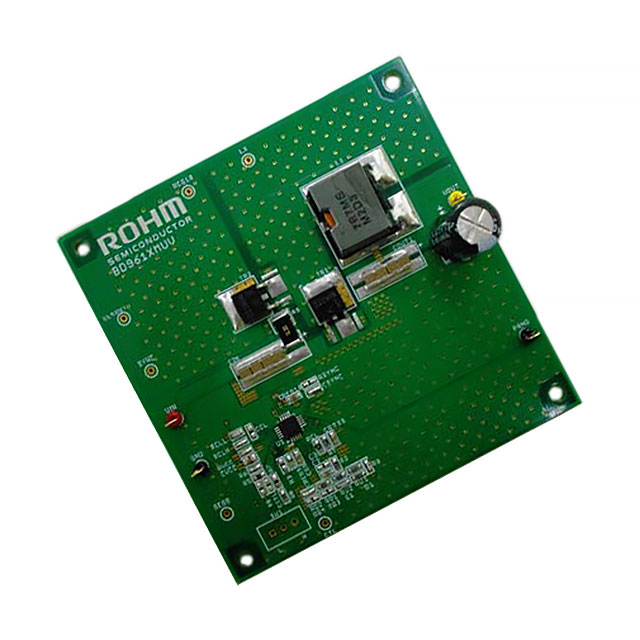

Rohm Semiconductor BD9611MUV-EVK-001	Fully Populated	DC/DC Step Down	12 V	Buck	Non-Isolated	1	10 A	Board(s)	250 kHz	BD9611	15 V	36 V

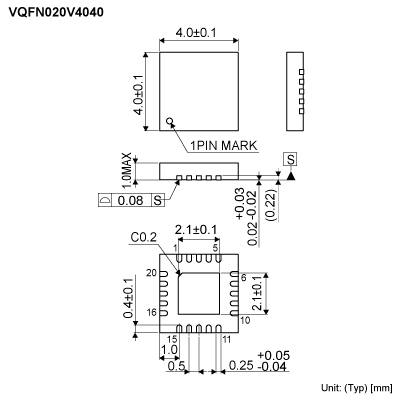

Rohm Semiconductor BD9611MUV-E2														VQFN020V4040	1	Buck	Transistor Driver	500 kHz	50 kHz	1	Current Limit Enable Frequency Control Soft Start		Step-Down	105 °C	-40 °C	20-VFQFN Exposed Pad	10 V	56 V	Surface Mount	Positive

Catalog

60V Synchronous Step-down Switching Regulator (Controller Type)

Key Features

• High Resistance and Wide Range Voltage Input: VCC=10V to 56V, Regulated Voltage Output to Drive External FET gate: REG10=10V, Internal Reference Voltage Accuracy: 0.8V±1.0%, Safe for Pre-biased Outputs, Adjustable Operating Frequency and Soft-start, Master/Slave Synchronization, Over Current Protection (OCP), Under Voltage Locked Output (UVLO, EXUVLO), Thermal Shut-down (TSD)

Description

The BD9611MUV is a high-resistance, wide voltage input (10V to 56V), synchronous step-down switching regulator. BD9611MUV offers design flexibility through user-programmable functions such as soft-start, operating frequency, high-side current limit, and loop compensation. BD9611MUV uses voltage pulse width modulation, and drives 2 external N-channel FETs. The Under-Voltage Locked Output (EXUVLO) protection connected to its CTL terminal has high accuracy reference voltage. Its threshold voltage can be adjusted by the resistance ratio between VCC and GND as seen by pin CTL. BD9611MUV is safe for pre-biased outputs. It does not turn on the synchronous rectifier until the internal high-side FET has already started switching.
