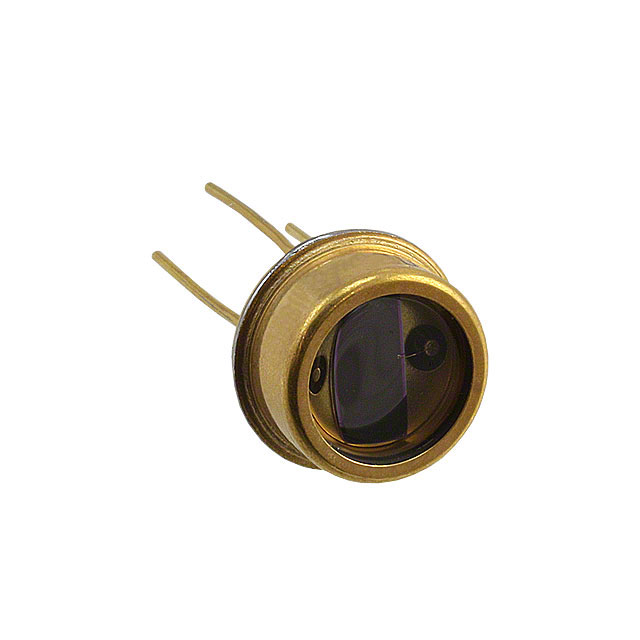

ODD-15 Series

Catalog

SENSOR PHOTODIODE 940NM TO5

Part	Color - Enhanced	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Current - Dark (Typ)	Responsivity @ nm	Active Area	Spectral Range [Max]	Spectral Range [Min]
Opto Diode Corp ODD-15W	Red	60 V	Through Hole	20 ns	100 °C	-55 C	940 nm	4 nA	0.4 A/W	15 mm²	1100 nm	400 nm
Opto Diode Corp ODD-15WB	Blue	60 V	Through Hole	20 ns	100 °C	-55 C	940 nm	4 nA	0.28 A/W	15 mm²	1100 nm	400 nm
