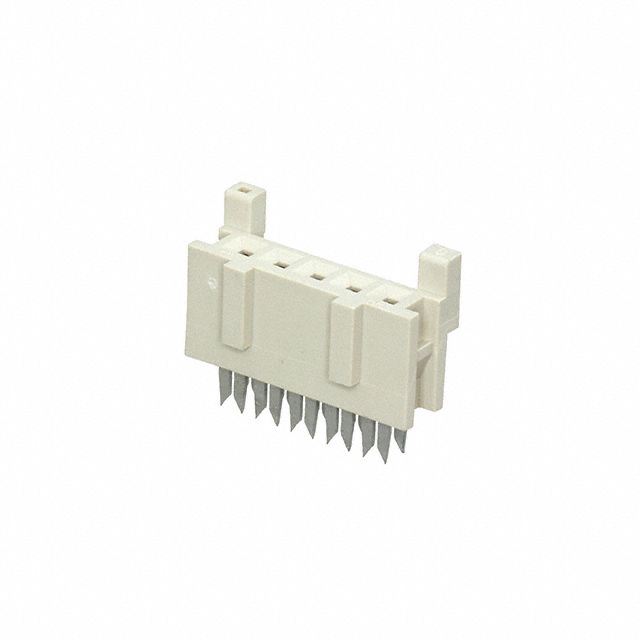

DF1-5 Series

Catalog

CONN HEADER VERT 5POS 2.5MM

Part	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Shrouding	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows	Contact Material	Number of Positions	Termination	Overall Contact Length	Overall Contact Length	Insulation Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Material	Number of Positions Loaded	Voltage Rating	Contact Shape	Insulation Height [z]	Insulation Height [z]	Fastening Type	Style	Note	Color	Pitch	Pitch	Contact Termination	Features	Contact Finish	Wire Type	Wire Gauge	Cable Termination

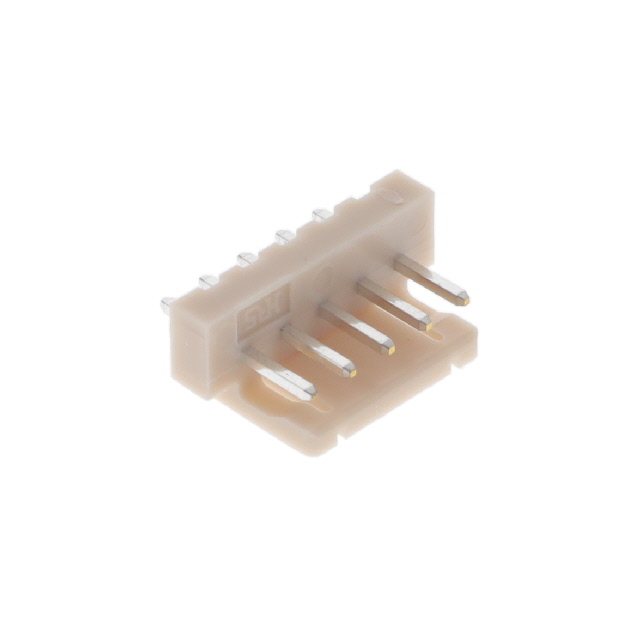

Hirose Electric Co Ltd DF1-5P-2.5DSA(05)	2.5 mm	0.098 in	0.177 in	4.5 mm	Header	Shrouded - 1 Wall	3 A	Tin	39.4 µin	1 µm	1	Brass	5	Solder	10 mm	0.394 in	Brown	Through Hole	85 °C	-30 ░C	UL94 V-0	0.118 in	3 mm	Male Pin	Nylon Polyamide (PA)	All	250 V	Square	7.5 mm	0.295 in	Friction Lock	Board to Cable/Wire
Hirose Electric Co Ltd DF1-5S-2.5C					Socket						1		5					Free Hanging (In-Line)	85 °C	-30 ░C				Female Socket	Nylon Polyamide (PA)								Contacts Not Included	Brown	2.5 mm	0.098 in	Crimp

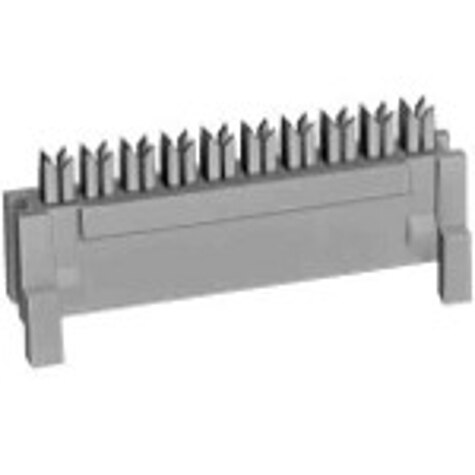

Hirose Electric Co Ltd DF1-5S-2.5R26(05)					Socket						1		5					Free Hanging (In-Line)						Female Socket										Brown	2.5 mm	0.098 in		Feed Through	Tin	Discrete	26 AWG	IDC
Hirose Electric Co Ltd DF1-5S-2.5R24(05)					Socket						1		5					Free Hanging (In-Line)						Female Socket										Brown	2.5 mm	0.098 in		Feed Through	Tin	Discrete	24 AWG	IDC
