2412PS Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

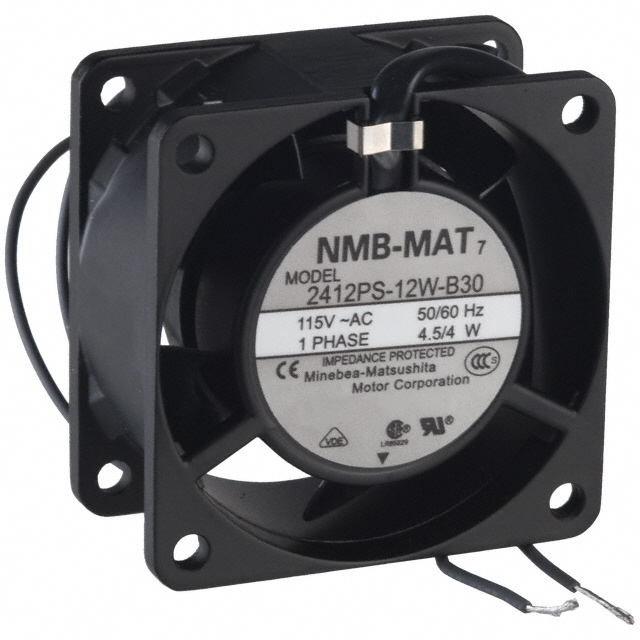

FAN AXIAL 60X30MM 100VAC WIRE
| Part | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Material - Frame | Approval Agency | Fan Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Air Flow | Air Flow | RPM | Termination | Width [y] | Static Pressure | Static Pressure | Weight | Weight | Size / Dimension [z] | Size / Dimension [x] | Noise | Bearing Type | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 50000 Hrs | Polycarbonate (PC) Fiberglass Reinforced | 70 mA | Aluminum | CE CSA UL VDE | Tubeaxial | 5 W | 70 °C | -10 °C | 0.255 mł/min | 9.1 CFM | 2600 RPM | 2 Wire Leads | 30 mm | 0.09 in H2O | 22.5 Pa | 0.309 lb | 140.16 g | 60 mm | 60 mm | 29 dB(A) | Ball | 100 VAC |
 NMB TECHNOLOGIES | 50000 Hrs | Polycarbonate (PC) Fiberglass Reinforced | 60 mA | Aluminum | CE CSA UL VDE | Tubeaxial | 70 °C | -10 °C | 0.255 mł/min | 9.1 CFM | 2600 RPM | 2 Wire Leads | 30 mm | 0.09 in H2O | 22.5 Pa | 0.3 lb | 136.08 g | 60 mm | 60 mm | 29 dB(A) | Ball | 115 VAC |
