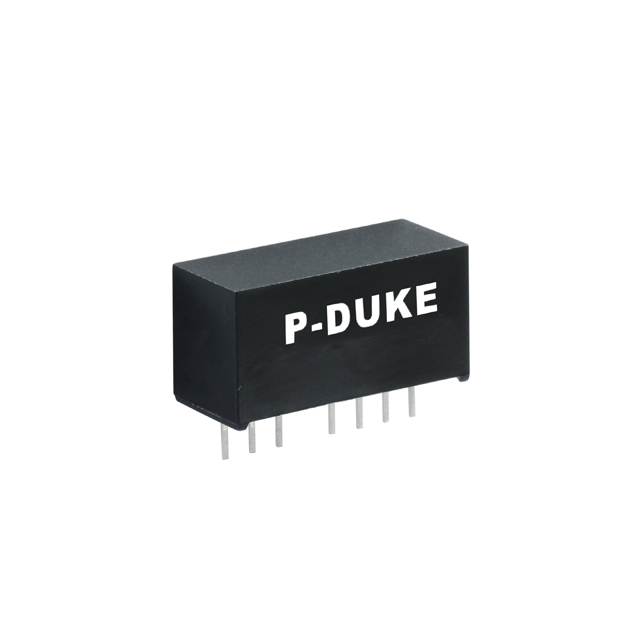

EDL02 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER +/-15V 2W
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Type | Voltage - Output 2 | Voltage - Input (Max) [Max] | Voltage - Isolation | Package / Case | Mounting Type | Current - Output (Max) | Current - Output (Max) | Applications | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Features | Efficiency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | CE | Isolated Module | -15 V | 36 V | 1.6 kV | 8-SIP Module 7 Leads | Through Hole | 67 mA | 67 mA | ITE (Commercial) | 2 | 18 V | 15 V | 105 C | -40 °C | Remote On/Off | 86 % | 2 W |
