PC673-2A Series
Manufacturer: Picker Components
Beta
⌘K

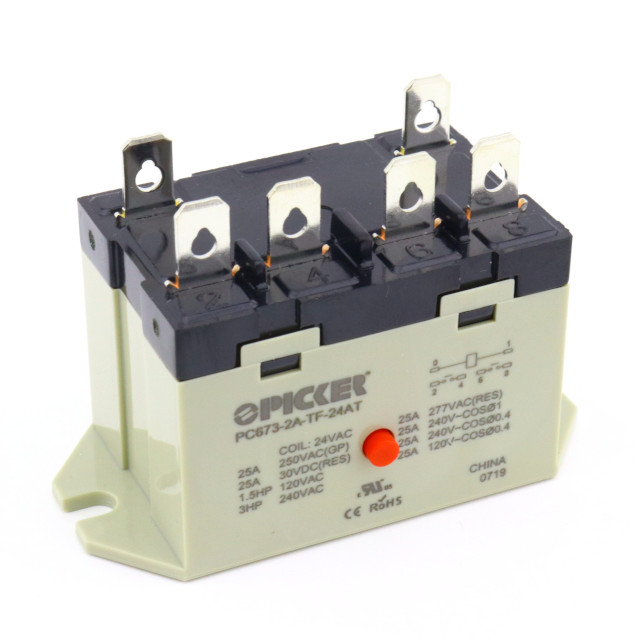

RELAY GEN PURPOSE DPST 25A 24V
| Part | Coil Resistance | Relay Type | Coil Voltage | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Termination Style | Release Time | Mounting Type | Must Operate Voltage | Contact Rating (Current) | Features | Switching Voltage | Coil Type | Contact Form | Load - Max Switching | Contact Material | Coil Insulation | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 275 Ohms | General Purpose | 24 VAC | 87.3 mA | -25 °C | 60 °C | cUL cURus UL | Quick Connect - 0.250" (6.3mm) | 30 ms | Chassis Mount | 19.2 VAC | 25 A | Test Button | 150 VDC 277 VAC | Non Latching | DPST-NO (2 Form A) | 3750 W 6925 VA | Silver Alloy | Class F | 2.4 VAC/DC | 30 ms |
