BXRE-30 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

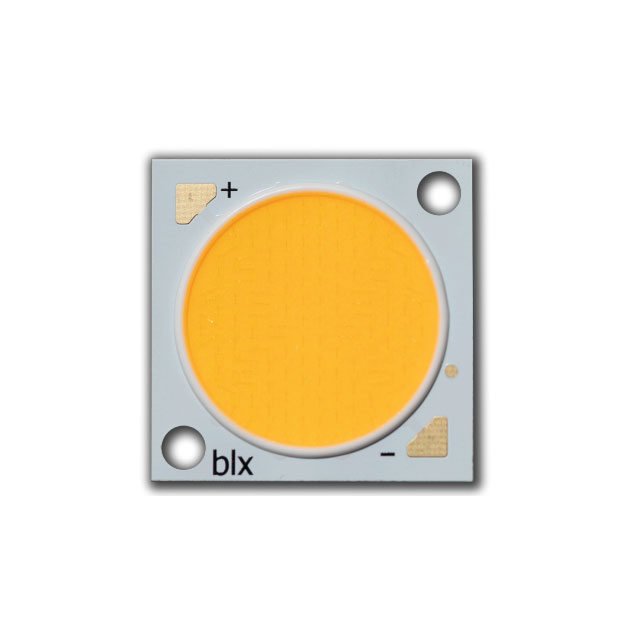

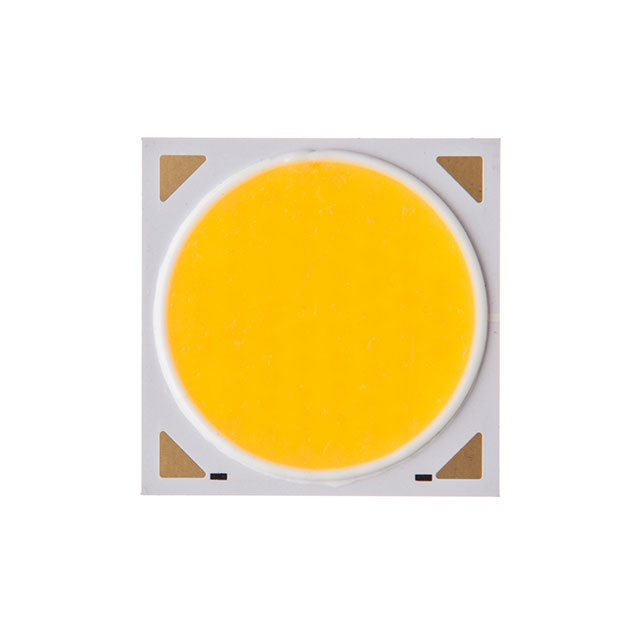

LED COB V18 WM WH SQUARE 3000K

...

Part	Current - Test	CRI (Color Rendering Index)	Height [z]	Lumens/Watt @ Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	Size / Dimension [x]	Size / Dimension [y]	Color	CCT (K)	CCT (K)	Light Emitting Surface (LES) [diameter]	Lens Type	Luminous Flux @ Current/Temperature	Temperature - Test	Type	Current - Max [Max]	Features
BRIDGELUX BXRE-30G40H0-C-83	1.05 A	90	1.65 mm	153 lm/W	120 °	33.9 V	Square	24 mm	24 mm	Warm White	3-Step MacAdam Ellipse	3000 K	19.6 mm	Flat	5440 lm	25 °C	Chip On Board (COB)	3 A
BRIDGELUX BXRE-30E4000-F-23	1.05 A	80	1.7 mm	132 lm/W	120 °	29.5 V	Square	21 mm	21 mm	Warm White	3-Step MacAdam Ellipse	3000 K	18.6 mm	Flat	4097 lm	25 °C	Chip On Board (COB)	2.1 A
BRIDGELUX BXRE-30E0800-D-83	300 mA	80		175 lm/W		16.8 V	Square			Warm White	3-Step MacAdam Ellipse	3000 K	8 mm	Flat	880 lm	25 °C	Chip On Board (COB)

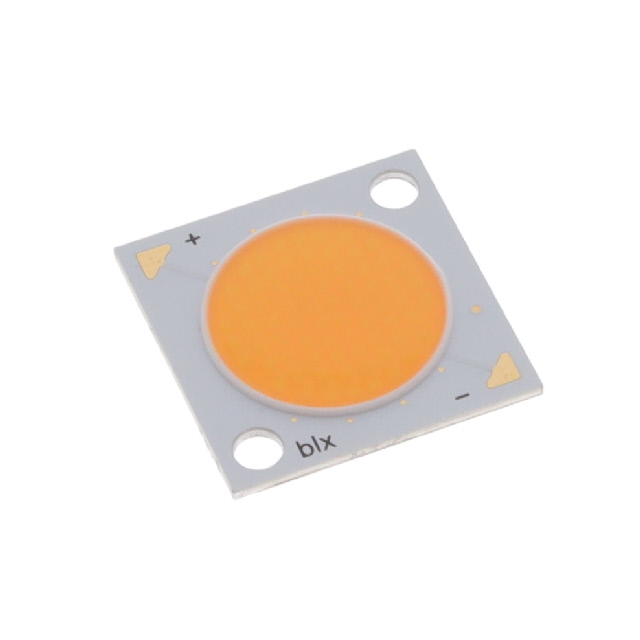

BRIDGELUX BXRE-30G3000-D-83	500 mA	90		144 lm/W		33.7 V	Square			Warm White	3-Step MacAdam Ellipse	3000 K	15 mm	Flat	2411 lm	25 °C	Chip On Board (COB)
BRIDGELUX BXRE-30G1000-C-73	360 mA	90	1.7 mm	114 lm/W		34 V	Square	13.5 mm	13.5 mm	Warm White	3-Step MacAdam Ellipse	3000 K	10.2 mm	Flat	1398 lm	85 °C	Chip On Board (COB)	720 mA

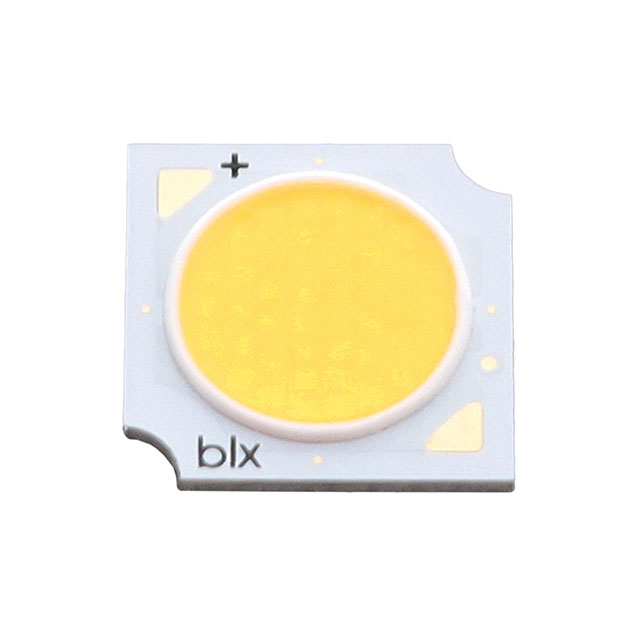

BRIDGELUX BXRE-30G10H0-C-83	300 mA	90	1.65 mm	151 lm/W	120 °	30.7 V	Square	13.5 mm	13.5 mm	Warm White	3-Step MacAdam Ellipse	3000 K	10.2 mm	Flat	1395 lm	25 °C	Chip On Board (COB)	1 A
BRIDGELUX BXRE-30E3000-D-83	500 mA	80		178 lm/W		33.7 V	Square			Warm White	3-Step MacAdam Ellipse	3000 K	15 mm	Flat	3010 lm	25 °C	Chip On Board (COB)
BRIDGELUX BXRE-30G20F0-B-83	350 mA	90	1.65 mm	188 lm/W	120 °	33.4 V	Square	19 mm	19 mm	Warm White		3000 K	14.8 mm	Flat	2256 lm	25 °C	Chip On Board (COB)	900 mA	Dimming
BRIDGELUX BXRE-30E6500-C-72	1.44 A	80	1.7 mm	143 lm/W 147 lm/W	120 °	50.7 V	Square	28 mm	28 mm	Warm White		3000 K	22.6 mm	Flat	10467 lm 10759 lm	85 °C	Chip On Board (COB)	2.88 A
BRIDGELUX BXRE-30G6500-D-83	1.05 A	90		147 lm/W		33.5 V	Square			Warm White	3-Step MacAdam Ellipse	3000 K	22 mm	Flat	5201 lm	25 °C	Chip On Board (COB)
