CWR-181 Series

Catalog

CONN D-SUB PLUG 37POS IDC

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Features	Number of Positions	Material Flammability Rating	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Rows [custom]	Mounting Type	Contact Finish	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]
CW Industries CWR-181-37-0021	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	37	UL94 V-0	4	DC C	IDC Ribbon Cable	D-Sub	30 Áin	0.76 Ám	Signal	2	Free Hanging (In-Line)	Gold	Housing/Shell (Unthreaded)

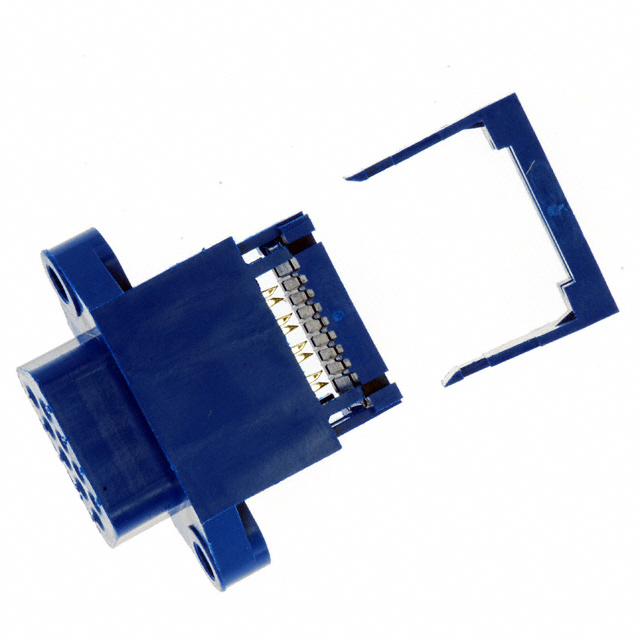

CW Industries CWR-181-09-0000	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	9	UL94 V-0			IDC Ribbon Cable	D-Sub	10 Áin	0.25 Ám	Signal	2	Free Hanging (In-Line)	Gold	Housing/Shell (Unthreaded)	1	DE E
CW Industries CWR-181-25-0003	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	25	UL94 V-0		B DB	IDC Ribbon Cable	D-Sub	100 µin	2.54 µm	Signal	2	Free Hanging (In-Line)	Tin	Housing/Shell (Unthreaded)			3
CW Industries CWR-181-09-0021	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	9	UL94 V-0			IDC Ribbon Cable	D-Sub	30 Áin	0.76 Ám	Signal	2	Free Hanging (In-Line)	Gold	Housing/Shell (Unthreaded)	1	DE E

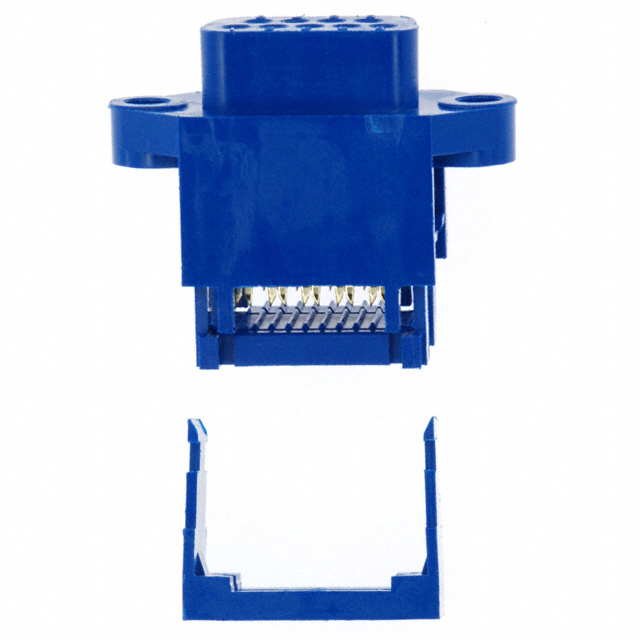

CW Industries CWR-181-09-0203	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	9	UL94 V-0			IDC Ribbon Cable	D-Sub	100 µin	2.54 µm	Signal	2	Free Hanging (In-Line)	Tin	Housing/Shell (Unthreaded)	1	DE E

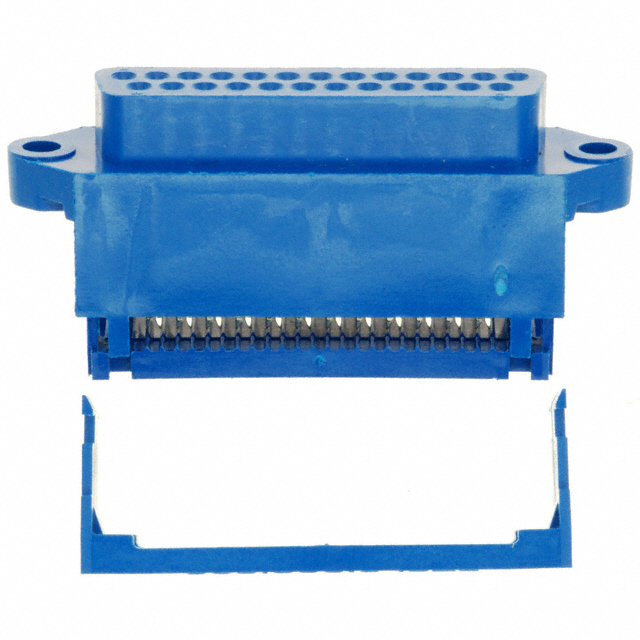

CW Industries CWR-181-25-0203	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	25	UL94 V-0		B DB	IDC Ribbon Cable	D-Sub	100 µin	2.54 µm	Signal	2	Free Hanging (In-Line)	Tin	Housing/Shell (Unthreaded)			3

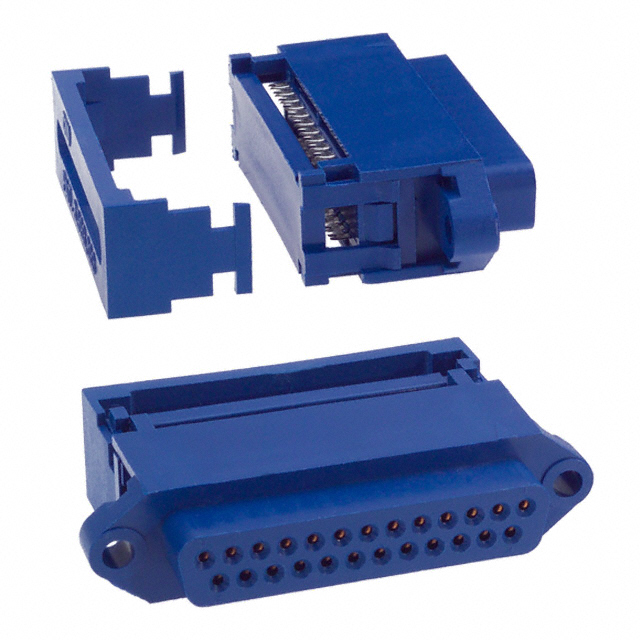

CW Industries CWR-181-25-0000	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	25	UL94 V-0		B DB	IDC Ribbon Cable	D-Sub	10 Áin	0.25 Ám	Signal	2	Free Hanging (In-Line)	Gold	Housing/Shell (Unthreaded)			3
CW Industries CWR-181-25-0021	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	25	UL94 V-0		B DB	IDC Ribbon Cable	D-Sub	30 Áin	0.76 Ám	Signal	2	Free Hanging (In-Line)	Gold	Housing/Shell (Unthreaded)			3
CW Industries CWR-181-09-0003	30 AWG	27.5 AWG	Phosphor Bronze	Thermoplastic	-55 C	125 °C	Blue	Plug Female Sockets	Feed Through Strain Relief	9	UL94 V-0			IDC Ribbon Cable	D-Sub	100 µin	2.54 µm	Signal	2	Free Hanging (In-Line)	Tin	Housing/Shell (Unthreaded)	1	DE E
