DSC6101 Series

Catalog

OSCILLATOR MEMS ±20PPM (STABILITY) LVCMOS 55% 1.8V/2.5V/3.3V 4-PIN VFLGA SMD TUBE AUTOMOTIVE AEC-Q100

Part	Current - Supply (Max)	Programmable Type	Mounting Type	Frequency Stability (Total)	Available Frequency Range [Min]	Available Frequency Range [Max]	Base Resonator	Voltage - Supply [Max]	Voltage - Supply [Min]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Package / Case	Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Output	Frequency Stability	Frequency	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Supplier Device Package

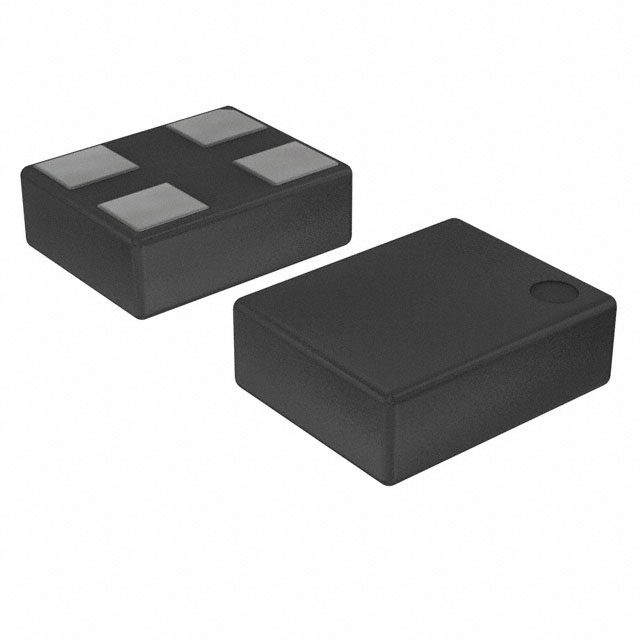

Microchip Technology DSC6101JA3B-PROG	3 mA	Blank (User Must Program)	Surface Mount	20 ppm	3.5 kHz	100 MHz	MEMS	3.63 V	1.71 V	AEC-Q100	0.098 "	2 mm	2.5 mm	0.079 in	0.035 "	0.89 mm	4-VLGA	XO (Standard)	Enable/Disable	125 °C	-40 °C	CMOS
Microchip Technology DSC6101CI2B-026.0000	3 mA		Surface Mount				MEMS	3.63 V	1.71 V		0.126 in	2.5 mm	3.2 mm	0.098 in	0.035 "	0.89 mm	4-VDFN	XO (Standard)	Enable/Disable	85 °C	-40 °C	CMOS	25 ppm	26 MHz

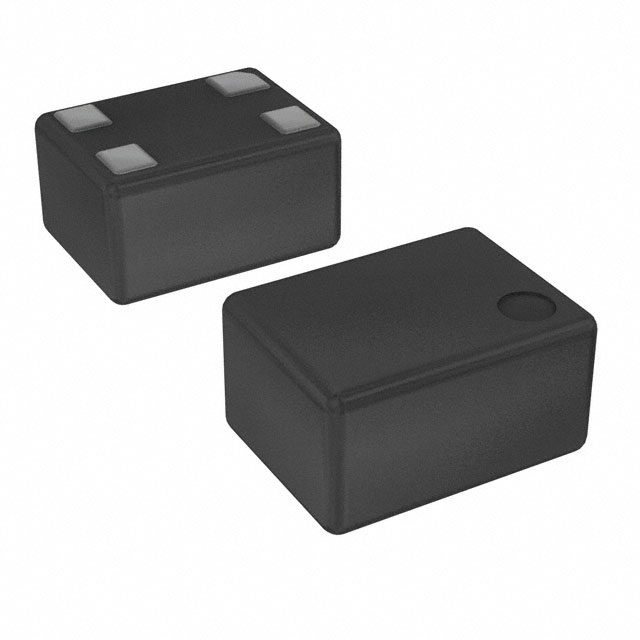

Microchip Technology DSC6101HA3B-024.0000	3 mA		Surface Mount				MEMS	3.63 V	1.71 V	AEC-Q100	0.063 in	1.2 mm	1.6 mm	0.047 in	0.035 "	0.89 mm	4-VFLGA	XO (Standard)	Enable/Disable	125 °C	-40 °C	CMOS	20 ppm	24 MHz
Microchip Technology DSC6101HL3B-027.0000	3 mA		Surface Mount				MEMS	3.3 V	1.8 V	AEC-Q100	0.063 in	1.2 mm	1.6 mm	0.047 in	0.035 "	0.89 mm	4-VFLGA	XO (Standard)	Enable/Disable	105 ░C	-40 °C	CMOS	20 ppm	27 MHz
Microchip Technology DSC6101CE2B-025.0000T	3 mA		Surface Mount				MEMS	3.3 V	1.8 V	AEC-Q100	0.126 in	2.5 mm	3.2 mm	0.098 in	0.035 "	0.89 mm	4-VDFN	XO (Standard)	Enable/Disable	70 °C	-20 C	CMOS	25 ppm	25 MHz

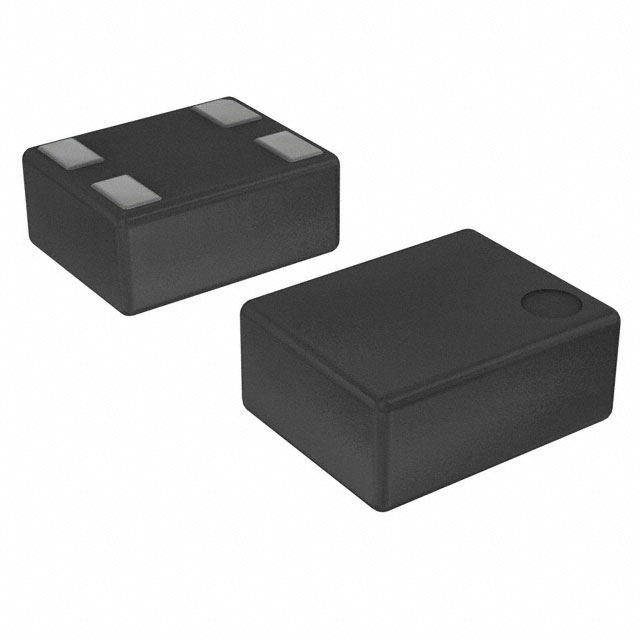

Microchip Technology DSC6101ML3B-025.0000	3 mA		Surface Mount				MEMS	3.3 V 3.63 V	1.71 V 1.8 V	AEC-Q100	0.079 in	1.6 mm	2 mm	0.063 in	0.035 "	0.89 mm	4-VFLGA	XO (Standard)	Enable/Disable	105 ░C	-40 °C	CMOS	20 ppm	25 MHz	0.9 mm
Microchip Technology DSC6101HA3B-PROGT	3 mA	Blank (User Must Program)	Surface Mount	20 ppm	3.5 kHz	100 MHz	MEMS	3.63 V	1.71 V	AEC-Q100	0.063 in	1.2 mm	1.6 mm	0.047 in	0.035 "	0.89 mm	4-VFLGA	XO (Standard)	Enable/Disable	125 °C	-40 °C	CMOS
Microchip Technology DSC6101HL3B-025.0000	3 mA		Surface Mount				MEMS	3.3 V	1.8 V	AEC-Q100	0.063 in	1.2 mm	1.6 mm	0.047 in	0.035 "	0.89 mm	4-VFLGA	XO (Standard)	Enable/Disable	105 ░C	-40 °C	CMOS	20 ppm	25 MHz
Microchip Technology DSC6101AI1B-100.0000T	1.3 mA		Surface Mount				MEMS	3.63 V	1.71 V	AEC-Q100					0.035 "	0.89 mm	4-VDFN	XO (Standard)		85 °C	-40 °C	CMOS	25 ppm	100 MHz		7 mm	5 mm	0.197 in	0.276 inches
Microchip Technology DSC6101JI2B-024.0000	3 mA		Surface Mount				MEMS	3.63 V	1.71 V	AEC-Q100	0.098 "	2 mm	2.5 mm	0.079 in	0.035 "	0.89 mm	4-VLGA	XO (Standard)	Enable/Disable	85 °C	-40 °C	CMOS	25 ppm	24 MHz	0.9 mm					4-VLGA (2.5x2)
