1430 Series

Manufacturer: 3M (TC)

Catalog

Catalog

TAPE ALUM FOIL SILVER 5" DIA

...

Part	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Shelf Life	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Tape Type	Backing, Carrier	Temperature Range [Max]	Temperature Range [Min]	Width [diameter]	Width	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Adhesive	Width	Width	Length	Length	Length [x]	Length [x]	Width [x]	Width [x]	Length	Width	Width [y]	Width [y]	Usage
3M (TC) 3M 1430 CIRCLE-5.000"-100	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C	5 in	127 mm	0.127 mm	0.005 in	5 mils	Silver	Acrylic
3M (TC) 3M 1430 0.5" X 10"-250	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C		12.7 mm	0.127 mm	0.005 in	5 mils	Silver	Acrylic	0.5 "	0.5 in	254 mm	10 in
3M (TC) 3M 1430 0.5" X 1"-250	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C		12.7 mm	0.127 mm	0.005 in	5 mils	Silver	Acrylic	0.5 "	0.5 in			1 in	25.4 mm
3M (TC) 3M 1430 1" X 6"-100	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C			0.127 mm	0.005 in	5 mils	Silver	Acrylic					6 "	152.4 mm	25.4 mm	1 in
3M (TC) 3M 1430 0.25" X 60YD	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C		6.35 mm	0.127 mm	0.005 in	5 mils	Silver	Acrylic	0.25 in	0.25 in	55 m	180 ft					60 yds
3M (TC) 3M 1430 4" X 6"-25	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C			0.127 mm	0.005 in	5 mils	Silver	Acrylic					6 "	152.4 mm	101.6 mm	4 in
3M (TC) 3M 1430 1.625" X 60YD	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C		41.28 mm	0.127 mm	0.005 in	5 mils	Silver	Acrylic		1.63 in	55 m	180 ft					60 yds	1 5/8
3M (TC) 3M 1430 9" X 9.25"-25	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C			0.127 mm	0.005 in	5 mils	Silver	Acrylic				9.25 "					234.95 mm		9 in	228.6 mm
3M (TC) 3M 1430 6" X 10.5"-25	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C			0.127 mm	0.005 in	5 mils	Silver	Acrylic			266.7 mm	10.5 in							6 in	152.4 mm

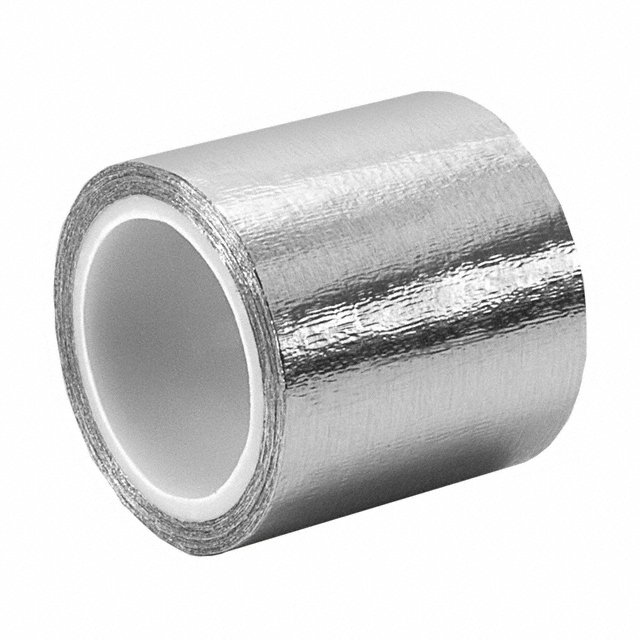

3M (TC) 3-5-1430	27 °C	80 °F	60 °F	16 °C	Date of Manufacture	18 Months	0.013 mm	0.0005 in	0.5 mils	0.0055 in	0.14 mm	5.5 mils	Aluminum Foil	Aluminum Dead Soft	149 °C 300 °F	-65 °F -54 °C			0.127 mm	0.005 in	5 mils	Silver	Acrylic			4.6 m	15 '			76.2 mm	3 in	5 yds				Sealing
