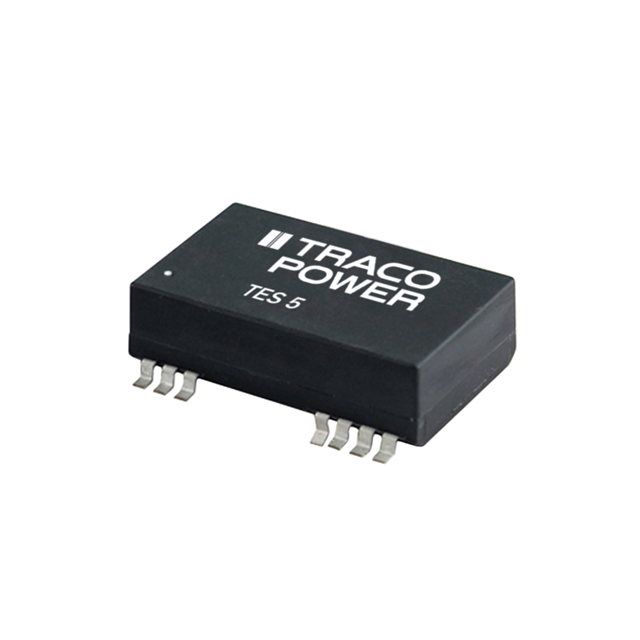

TES 5 Series

Catalog

DC DC CONVERTER 15V 5W

Part	Number of Outputs	Package / Case	Voltage - Output 1	Type	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Efficiency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TES 5-4813	1	24-SMD Module 14 Leads	15 V	Isolated Module	ITE (Commercial)	75 V	335 mA	1.5 kV	36 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W	85 %	Surface Mount	-40 °C	85 °C
Traco Power TES 5-2412WI	1	24-SMD Module 14 Leads	12 V	Isolated Module	ITE (Commercial)	36 V	420 mA	1.5 kV	9 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W	83 %	Surface Mount	-40 C	71 °C
Traco Power TES 5-2413	1	24-SMD Module 14 Leads	15 V	Isolated Module	ITE (Commercial)	36 V	335 mA	1.5 kV	18 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W	85 %	Surface Mount	-40 °C	85 °C

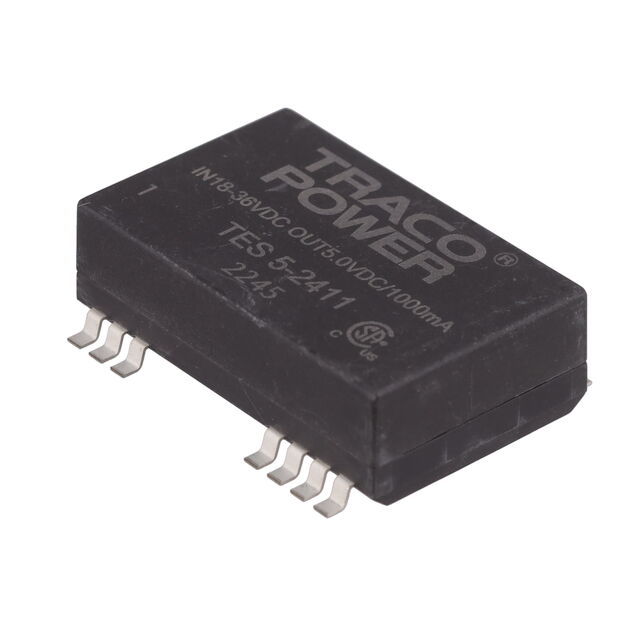

Traco Power TES 5-2411	1	24-SMD Module 14 Leads	5 V	Isolated Module	ITE (Commercial)	36 V	1 A	1.5 kV	18 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W		Surface Mount	-40 °C	85 °C
Traco Power TES 5-4810WI	1	24-SMD Module 14 Leads	3.3 V	Isolated Module	ITE (Commercial)	75 V	1.2 A	1.5 kV	18 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	4 W	76 %	Surface Mount	-40 C	71 °C
Traco Power TES 5-2412	1	24-SMD Module 14 Leads	12 V	Isolated Module	ITE (Commercial)	36 V	420 mA	1.5 kV	18 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W	85 %	Surface Mount	-40 °C	85 °C
Traco Power TES 5-4823WI	2	24-SMD Module 14 Leads	15 V	Isolated Module	ITE (Commercial)	75 V	165 mA	1.5 kV	18 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W	83 %	Surface Mount	-40 C	71 °C	-15 V	165 mA
Traco Power TES 5-2410WI	1	24-SMD Module 14 Leads	3.3 V	Isolated Module	ITE (Commercial)	36 V	1.2 A	1.5 kV	9 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	4 W	76 %	Surface Mount	-40 C	71 °C
Traco Power TES 5-4821	2	24-SMD Module 14 Leads	5 V	Isolated Module	ITE (Commercial)	75 V		1.5 kV	36 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W		Surface Mount	-40 °C	85 °C	-5 V		500 mA
Traco Power TES 5-2411WI	1	24-SMD Module 14 Leads	5 V	Isolated Module	ITE (Commercial)	36 V	1 A	1.5 kV	9 V	Remote On/Off SCP	0.4 "	1.31 in	33.4 mm	20.6 mm	10.2 mm	0.81 "	5 W	80 %	Surface Mount	-40 C	71 °C
