ADP3334 Series

Catalog

HIGH ACCURACY LOW IQ, 500MA ANYCAP®ADJUSTABLE LOW DROPOUT REGULATOR

Part	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Number of Regulators	Current - Output	Output Configuration	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Control Features	Output Type	Voltage - Output (Max) [Max]	Voltage Dropout (Max) [Max]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Mounting Type

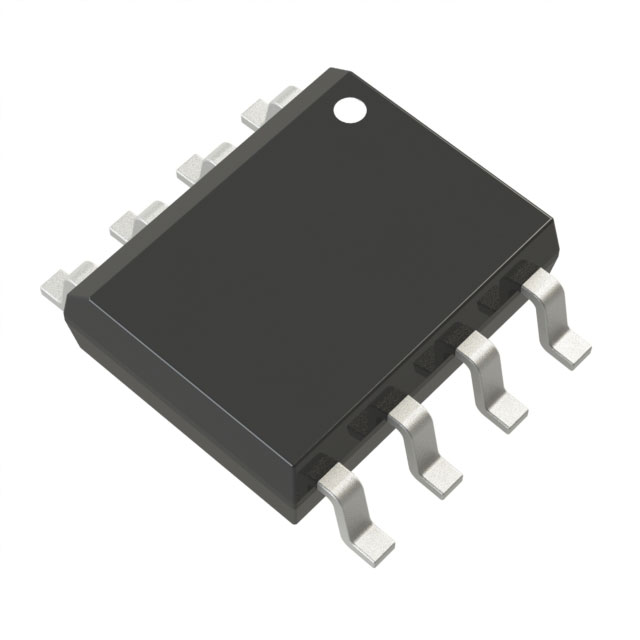

Analog Devices ADP3334ARZ-REEL	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	500 mA	Positive	1.5 V	10 mA	130 µA	Feedback Shutdown	Adjustable	10 V	0.4 V	Over Current Over Temperature	85 °C	-40 °C	11 V	Surface Mount
Analog Devices ADP3334ACPZ-REEL7	8-LFCSP (3x3)	8-WFDFN Exposed Pad CSP			1	500 mA	Positive	1.5 V	10 mA	130 µA	Feedback Shutdown	Adjustable	10 V	0.4 V	Over Current Over Temperature	85 °C	-40 °C	11 V	Surface Mount
Analog Devices ADP3334AR-REEL7	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	500 mA	Positive	1.5 V	10 mA	130 µA	Feedback Shutdown	Adjustable	10 V	0.4 V	Over Current Over Temperature	85 °C	-40 °C	11 V	Surface Mount
Analog Devices ADP3334ARZ-REEL7	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	500 mA	Positive	1.5 V	10 mA	130 µA	Feedback Shutdown	Adjustable	10 V	0.4 V	Over Current Over Temperature	85 °C	-40 °C	11 V	Surface Mount
Analog Devices ADP3334ARZ	8-SOIC	8-SOIC	3.9 mm	0.154 in	1	500 mA	Positive	1.5 V	10 mA	130 µA	Feedback Shutdown	Adjustable	10 V	0.4 V	Over Current Over Temperature	85 °C	-40 °C	11 V	Surface Mount
