18-6810 Series
Manufacturer: Aries Electronics
Beta
⌘K
CONN IC DIP SOCKET 18POS TIN
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Pitch - Mating | Pitch - Mating | Housing Material | Pitch - Post | Pitch - Post | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating | Contact Material - Post | Mounting Type | Number of Positions or Pins (Grid) | Type [custom] | Type [custom] | Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

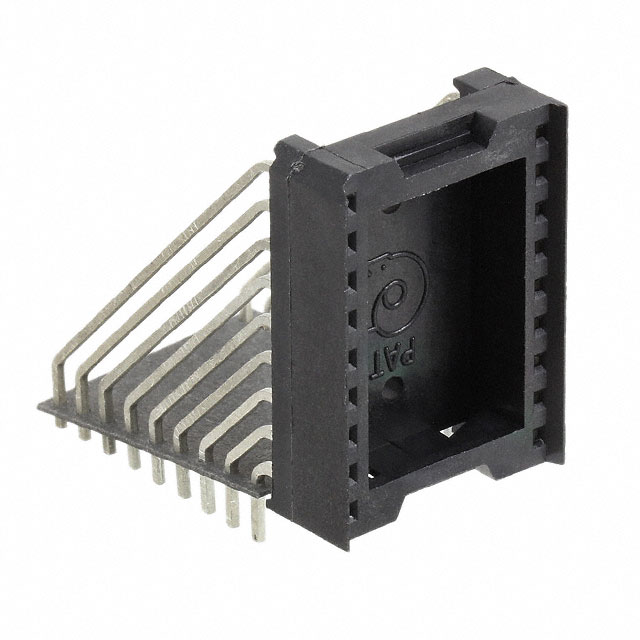

 Aries Electronics | 1.5 A | 0.145 in | 3.68 mm | UL94 V-0 | Tin | 5.08 µm | 200 µin | Closed Frame | 0.1 " | 2.54 mm | Polyamide (PA46) Nylon 4/6 | 0.1 in | 2.54 mm | Solder | 200 µin | 5.08 µm | Phosphor Bronze | Phosphor Bronze | Right Angle Through Hole Vertical | 18 | 15.24 mm | 0.6 in | DIP | |

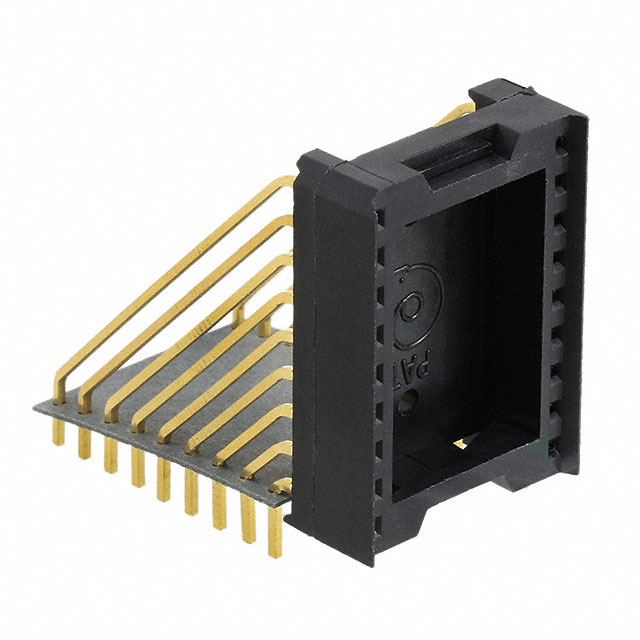

 Aries Electronics | 1.5 A | 0.145 in | 3.68 mm | UL94 V-0 | Gold | 0.25 µm | 10 µin | Closed Frame | 0.1 " | 2.54 mm | Polyamide (PA46) Nylon 4/6 | 0.1 in | 2.54 mm | Solder | 10 Áin | 0.25 çm | Phosphor Bronze | Phosphor Bronze | Right Angle Through Hole Vertical | 18 | 15.24 mm | 0.6 in | DIP | Gold |
