4715HS Series

Catalog

FAN AXIAL 119X38MM 230VAC TERM

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Width [y]	RPM	Bearing Type	Voltage - Rated	Termination	Weight [custom]	Weight [custom]	Noise	Power (Watts)	Ingress Protection

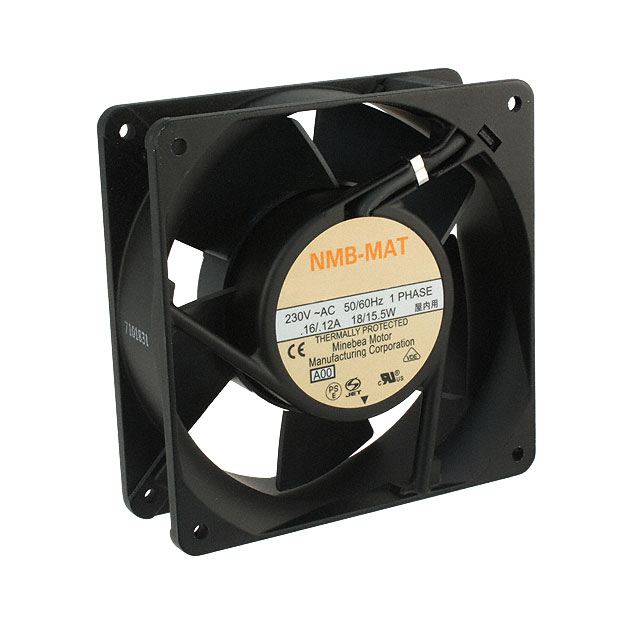

NMB TECHNOLOGIES 4715HS-23T-B5A-A00	12 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	230 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W
NMB TECHNOLOGIES 4715HS-22T-B50-BM0		100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	220 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W
NMB TECHNOLOGIES 4715HS-24T-B5A-A00	120 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	240 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W
NMB TECHNOLOGIES 4715HS-20T-B50-BM0	150 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	200 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W

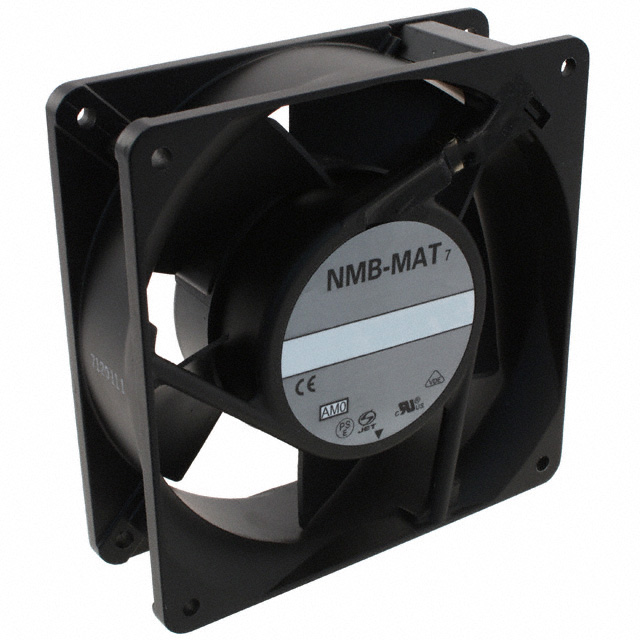

NMB TECHNOLOGIES 4715HS-12T-B50-AM0	25 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	115 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W	IP54 - Dust Protected Water Resistant
NMB TECHNOLOGIES 4715HS-10T-B50-BM0	0.29 A	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	100 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W
NMB TECHNOLOGIES 4715HS-24T-B50-AM0	120 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	240 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W

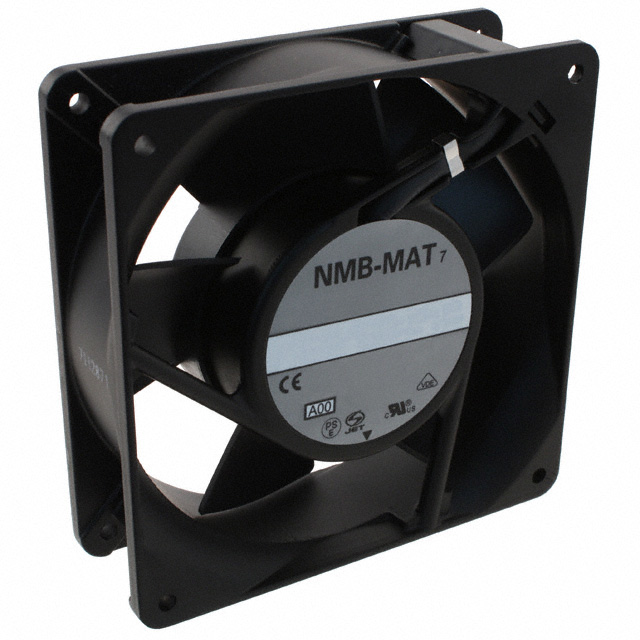

NMB TECHNOLOGIES 4715HS-12T-B5A-A00	25 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	115 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W
NMB TECHNOLOGIES 4715HS-20T-B5A-B00	150 mA	100000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Aluminum	CE UL VDE	2.97 m³/min	105.9 CFM	99.6 Pa	0.4 in H2O	Tubeaxial	Square	119 mm	119 mm	14 ~ 149°F (-10 ~ 65°C)	38 mm	3100 RPM	Ball	200 VAC	2	1.3 lbs	589.7 g	44 dB(A)	15.5 W
