PIC16F676 Series

Newer Device Available PIC16F18324

Catalog

Newer Device Available PIC16F18324

Part	Package / Case [x]	Package / Case [y]	Package / Case	Data Converters [custom]	Data Converters [custom]	Core Processor	Speed	EEPROM Size	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O	Program Memory Size	Core Size	Oscillator Type	Package / Case [custom]	Package / Case [custom]	Supplier Device Package
Microchip Technology PIC16F676-I/SL	0.154 in	3.9 mm	14-SOIC	8	10	PIC	20 MHz	128 x 8	Surface Mount	85 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal
Microchip Technology PIC16F676T-E/ST			14-TSSOP	8	10	PIC	20 MHz	128 x 8	Surface Mount	125 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal	0.173 "	4.4 mm	14-TSSOP

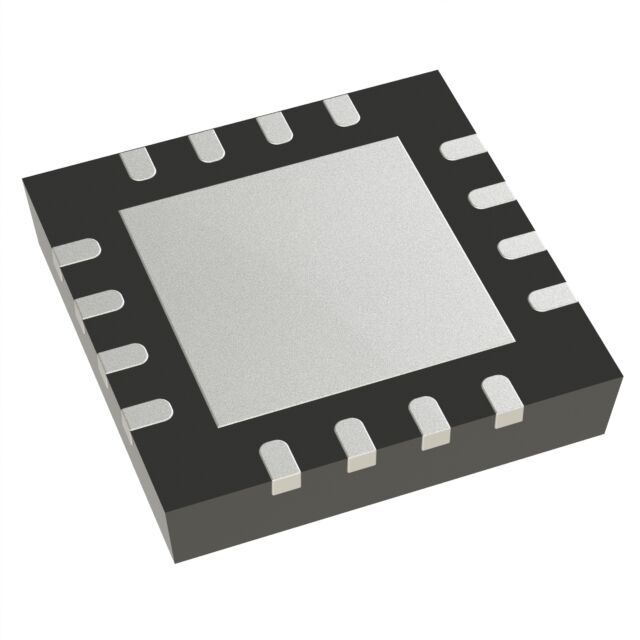

Microchip Technology PIC16F676-E/ML			16-VQFN Exposed Pad	8	10	PIC	20 MHz	128 x 8	Surface Mount	125 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal			16-QFN (4x4)
Microchip Technology PIC16F676-E/P	0.3 "	7.62 mm	14-DIP	8	10	PIC	20 MHz	128 x 8	Through Hole	125 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal
Microchip Technology PIC16F676T-I/ST			14-TSSOP	8	10	PIC	20 MHz	128 x 8	Surface Mount	85 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal	0.173 "	4.4 mm	14-TSSOP
Microchip Technology PIC16F676-E/ST			14-TSSOP	8	10	PIC	20 MHz	128 x 8	Surface Mount	125 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal	0.173 "	4.4 mm	14-TSSOP
Microchip Technology PIC16F676T-I/SL	0.154 in	3.9 mm	14-SOIC	8	10	PIC	20 MHz	128 x 8	Surface Mount	85 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal
Microchip Technology PIC16F676T-I/ML			16-VQFN Exposed Pad	8	10	PIC	20 MHz	128 x 8	Surface Mount	85 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal			16-QFN (4x4)
Microchip Technology PIC16F676T-E/SL	0.154 in	3.9 mm	14-SOIC	8	10	PIC	20 MHz	128 x 8	Surface Mount	125 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal
Microchip Technology PIC16F676-I/ML			16-VQFN Exposed Pad	8	10	PIC	20 MHz	128 x 8	Surface Mount	85 °C	-40 °C	64 x 8	FLASH	5.5 V	2 V	12	1.75 KB	8-Bit	Internal			16-QFN (4x4)

Catalog

Newer Device Available PIC16F18324

Key Features

• * 128 bytes of EEPROM Data Memory

• * programmable pull-up resistors

• * individually selectable analog channels

• * ICD2 programming support or debugging support with optional header adapter

• * 8 oscillator sellections including precision 4 MHz RC oscillator with programmable

• calibration and Power-on Reset

Description

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.
