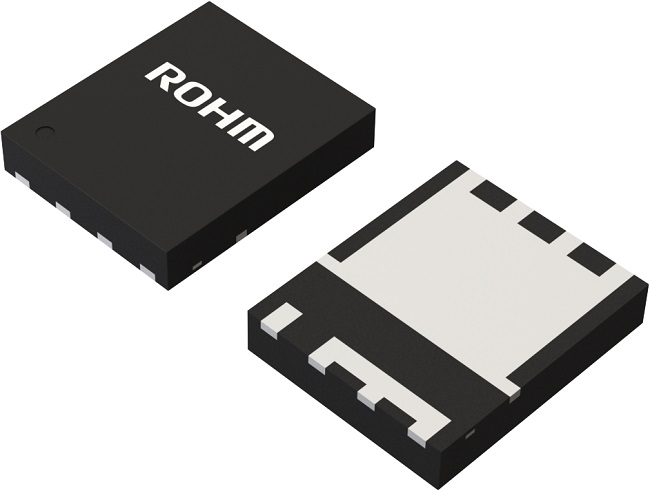

Nch 30V 390A, DFN5060-8S, Power MOSFET
Description
AI
RS7E200BG is a power MOSFET with low-on resistance and high power package, suitable for switching, motor drives, and DC/DC converter.
Beta
⌘K
Nch 30V 390A, DFN5060-8S, Power MOSFET
Nch 30V 390A, DFN5060-8S, Power MOSFET
| Part | Mounting Type | Package / Case | Vgs(th) (Max) @ Id | FET Type | Gate Charge (Qg) (Max) @ Vgs [Max] | Technology | Drain to Source Voltage (Vdss) | Power Dissipation (Max) | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | Vgs (Max) | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Surface Mount | 8-PowerTDFN | 2.5 V | N-Channel | 135 nC | MOSFET (Metal Oxide) | 30 V | 3 W | 180 W | 4.5 V 10 V | 20 V | 0.67 mOhm | 9500 pF | 150 °C | -55 °C | DFN5060-8S | 390 A |
