AME40 Series

Manufacturer: aimtec

Catalog

DC/DC CONVERTER 48V 40W

Part	Load Regulation	Power (Watts)	Mounting Type	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Type	Features	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Applications	Line Regulation	Weight [custom]	Weight [custom]	Approval Agency	Load Regulation	Weight	Weight	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output 1	Voltage - Isolation

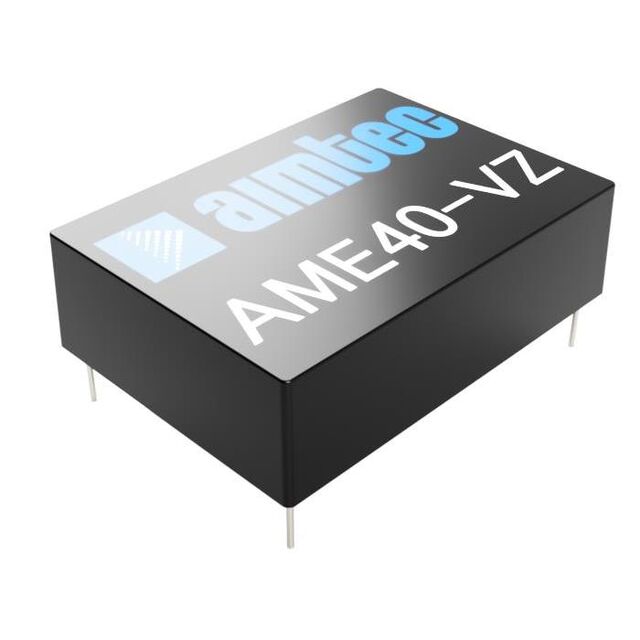

aimtec AME40-48SVZ	±1%	40 W	Through Hole	1	84 %	830 mA	Enclosed	Universal Input	48 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	264 VAC 370 VDC	7-DIP Module 5 Leads	ITE (Commercial)	0.5 %	0.474 lb	215 g
aimtec AME40-5SMAZ		40 W	Through Hole	1	80 %	8 A	Enclosed	Universal Input	5 V	1.18 in	3.56 "	90.5 mm	30 mm	63 mm	2.48 in	90 VAC 130 VDC	264 VAC 370 VDC	5-DIP Module 4 Leads	ITE (Commercial) Medical	2 %			CB CE cULus cURus UL	3 %	0.661 lb	300 g	60601-1	-40 °C	85 °C
aimtec AME40-48S277VZ	±1%	40 W	Through Hole	1	84 %	830 mA	Enclosed		48 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	305 VAC 430 VDC	7-DIP Module	ITE (Commercial)	0.5 %	0.474 lb	215 g					62368-1
aimtec AME40-15SMAZ		40 W	Through Hole	1	84 %	2.66 A	Enclosed	Universal Input	15 V	1.18 in	3.56 "	90.5 mm	30 mm	63 mm	2.48 in	90 VAC 130 VDC	264 VAC 370 VDC	5-DIP Module 4 Leads	ITE (Commercial) Medical	2 %			CB CE cULus cURus UL	3 %	0.661 lb	300 g	60601-1	-40 °C	85 °C

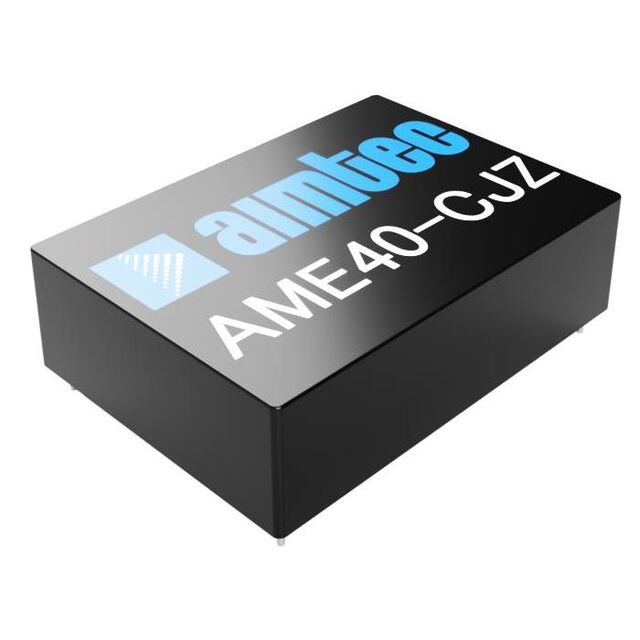

aimtec AME40-5DCJZ	±1%	40 W	Through Hole	2			Enclosed	Universal Input	5 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	264 VAC 370 VDC	7-DIP Module 5 Leads	ITE (Commercial)	0.5 %			CE cURus							4 A

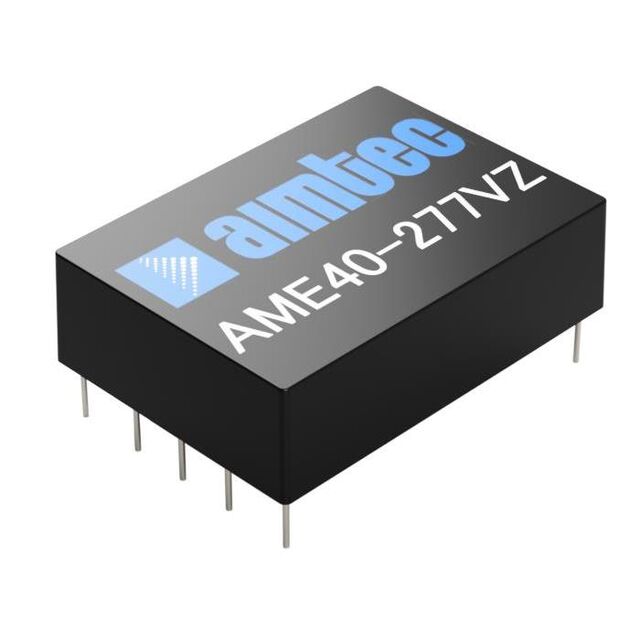

aimtec AME40-24S277VZ	±1%	40 W	Through Hole	1	84 %	1.67 A	Enclosed		24 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	305 VAC 430 VDC	7-DIP Module	ITE (Commercial)	0.5 %	0.474 lb	215 g					62368-1
aimtec AME40-12S277VZ	±1%	40 W	Through Hole	1	84 %	3.33 A	Enclosed		12 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	305 VAC 430 VDC	7-DIP Module	ITE (Commercial)	0.5 %	0.474 lb	215 g					62368-1
aimtec AME40-3.3SVZ	±1%	26 W	Through Hole	1	78 %	8 A	Enclosed	Universal Input	3.3 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	264 VAC 370 VDC	7-DIP Module 5 Leads	ITE (Commercial)	0.5 %	0.474 lb	215 g

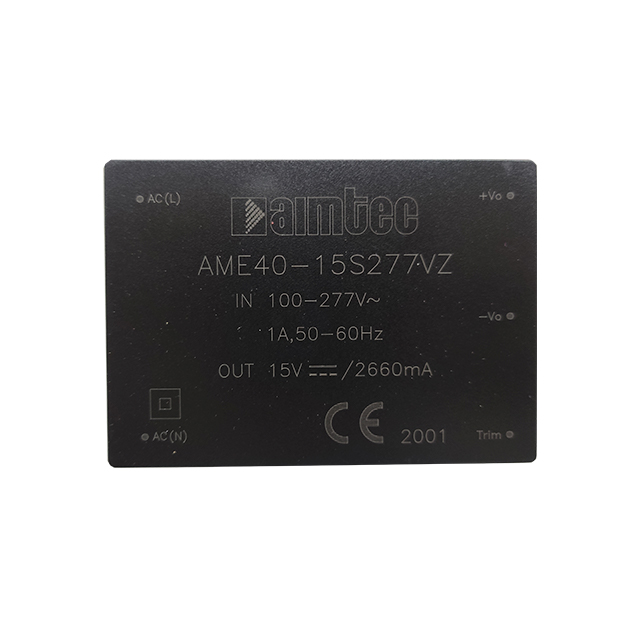

aimtec AME40-15SVZ-ST		40 W	Chassis Mount	1	84 %		Enclosed	Universal Input	15 V	1.32 in	5.32 "	135 mm	33.5 mm	70 mm	2.76 "	85 VAC 100 V	264 VAC 370 VDC		ITE (Commercial)									-40 C	70 °C		2.66 A	4000 V
aimtec AME40-15S277VZ	±1%	40 W	Through Hole	1	84 %	2.66 A	Enclosed		15 V	0.98 in	3.5 "	89 mm	25 mm	63.5 mm	2.5 "	85 VAC 100 V	305 VAC 430 VDC	7-DIP Module	ITE (Commercial)	0.5 %	0.474 lb	215 g					62368-1
